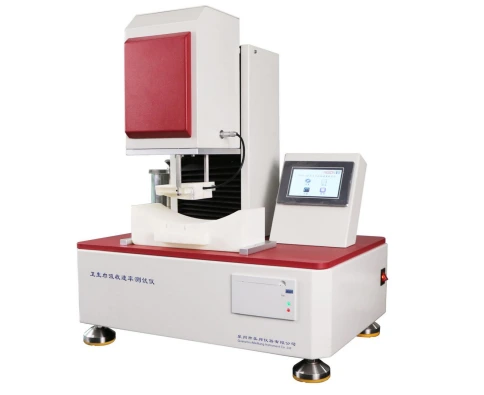

Sanitary Napkin Absorption Rate Tester
Model
FZ-W272
Standard
GB/T 8939-2018 Sanitary napkins (pads) Appendix A
Features
1. Touch screen control, Chinese and English menus, man-machine dialogue mode, easy to operate.
2. Built-in thermal printer, convenient to quickly print test results on site.
3. High-precision peristaltic pump to ensure the accuracy of penetrating liquid volume.
4. Automatic liquid addition, automatic test, no need to manually add liquid.
5. The electrode is made of special materials, with good induction; the electrode is automatically positioned.
6. There is an overflow receiving device on the sample loading platform.
Specfication
1. Add liquid volume: 1.0～10.0mL (set arbitrarily)
2. Standard test module: size: 76×80±1mm, mass: 127.0±2.5g
3. Arc sample holder: 230×80±1mm
4. Dropping speed: ≥1.7mL/s (to complete the dripping of 5.0mL within 3s)
5. The running speed of the liquid feeding head: 20～200mm/min
6. Test time: 0～999.99s; Accuracy: 0.01s
7. Dimensions: 510×360×590mm
8. Weight: 40kg
9. Power supply: AC220V 50Hz 100W
