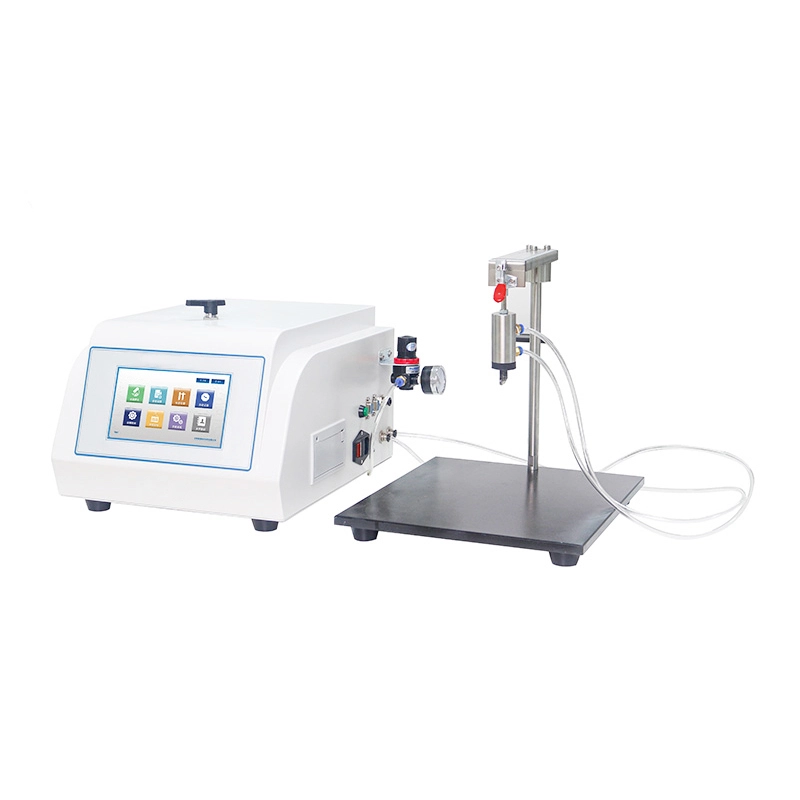

Seal strength tester air tightness test equipment ASTM F1140 ASTM F2054 ISO 11607-1 ISO 11607-2
7-inch touch screen control
Positive pressure design principle, simple operation, stable and reliable performance
Optional test range, wide test range and wide application field
Double test method for expansion inhibition and expansion non-suppression
Multiple test mode selection from rupture test, creep test, creep to rupture test
"One key" operation in the test process, intelligent and high test efficiency
Test data high-definition touch screen operation, automatic statistics and printing of results
Test attachment support, flexible test mode, and diversified compatibility
Automatic pressure regulation test mode, automatic flow leak detection function
Standard USB interface configuration, computer software support, and result display in multiple units
The product complies with GMP user multi-level permissions
The test curve shows the change trend of force value during the test in real time
Special computer communication software can be used for real-time display of test, data analysis and processing, and data storage
|
Test type |
Test materials |
|
Pressure rupture test |
Various plastic film, aluminum film, paper-plastic composite, aluminum-plastic composite and other packaging bags, packaging hoses |
|
Creep test |
Applicable to various packaging bags, boxes, etc |
|
Creep to fracture |
Applicable to various packaging bags, boxes, etc |
|
Sealing performance |
Various aerosol valves, applicable to various bottle caps, three-piece cans and paper packaging cans |
|
Test range |
0～1MPa |
|
100 kPa,400 kPa,600 kPa,1.6MPa（optional） |
|
|
Test accuracy |
0.5% (0.25% optional） |
|
Pressure readout |
0.001 kPa |
|
Gas filling head |
Ф10 mm (custom made） |
|
Gas filling flow |
0.01 ~ 10 L/min （optional） |
|
Pressure holding time |
1 ~ 99999 s |
|
air source pressure |
0.5MPa ~ 0.9MPa (air source self-prepared） |
|
Air source joint size |
Ф6mm Polyurethane pipe |
|
Function expansion |
Automatic pressure regulation and flow leak detection function (optional) |
|
Overall dimension |
320 mm（L）× 400 mm（B）× 265 mm（H） |
|
Test seat size |
305 mm（L）× 356mm（B）×325mm（H） |
|
Power Supply |
AC 220 V 50 Hz |
|
Net weight |
23 kg |
Configurations
Standard configuration: host, test rack, micro-printer
Optional parts: professional software, communication cable, test accessories (restraint plate test device; open packaging test device; plastic anti-theft bottle cap sealing performance test device; hose sealing performance test device; aerosol valve sealing performance test device)
Remarks: The air source interface of this machine is Φ 8mm polyurethane pipe; The gas source is prepared by the user.
