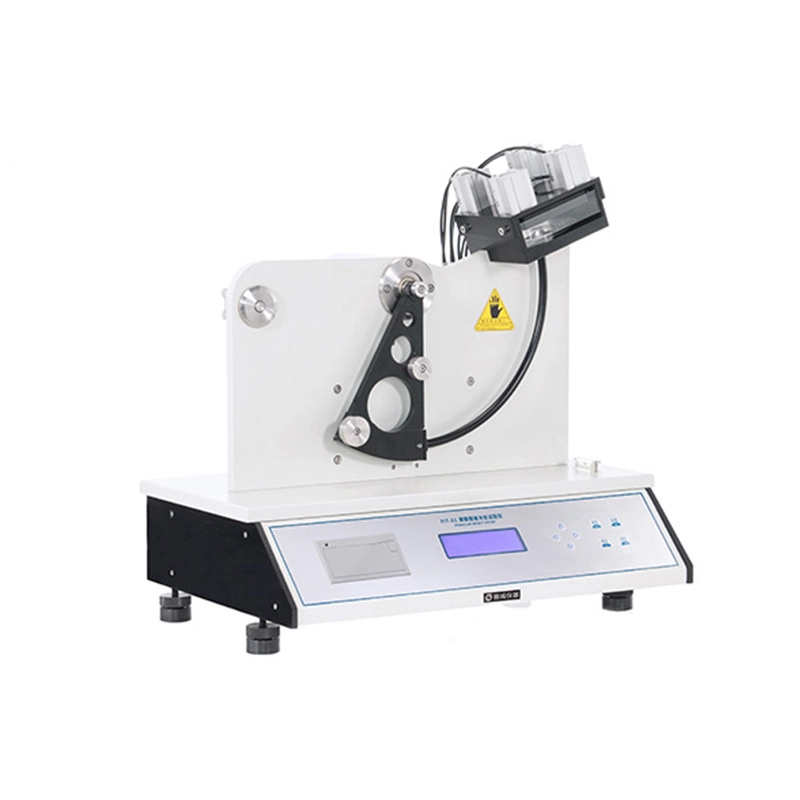

Thin film pendulum impact tester ASTM D3420 NF T54-116
• Adjustable measure range, and the electronic measurement can easily and accurately realize the test under various test conditions
• Pneumatic clamping, pneumatic release of pendulum and level adjustment auxiliary system effectively avoid system errors caused by human factors
• The system automatically counts the test data, and intuitively displays the test results to the user
• Microcomputer control, LCD display, menu interface and PVC operation panel, convenient for users to quickly perform test operations and data viewing
• Mini printer and standard RS232 interface to facilitate the external connection and data transmission between equipment and the computer
• Laboratory data sharing system, unified management of test results and test reports
It tests the sheet film impact strength by measure the power needed for the hemispherical punch to impact & penetrate the sheet film with a specific speed.
GB/T 8809-88, ASTM D3420, NF T54-116
|
Impact energy |
3J, 5J(optional) |
|
Resolution |
0.001 J |
|
Punch size |
Ф25.4 mm,Ф19 mm (customized） |
|
Specimen size |
100 mm x 100 mm or Ф100mm |
|
Air pressure |
0.6 MPa（by customer） |
|
Air connection |
Ф6 mm Polyurethane (PU)tube |
|
Dimensions |
600 mm (L) × 390 mm (W) × 600 mm (H) |
|
Power supply |
AC 220V 50Hz |
|
Net weight |
64 kg |
Main unit, 1J basic pendulum body, capacity 2J weight 1pc, capacity 3J weight 1pc,Ф25.4mm standard punch 1pc, Ф19mm standard punch 1pc,Ф89mm standard test splints (including O-rings) 1pair, Ф60mm standard test splint One pair (including O-ring) 1pair, mini printer
Optional parts: professional software, communication cable, non-standard punch, O-ring
