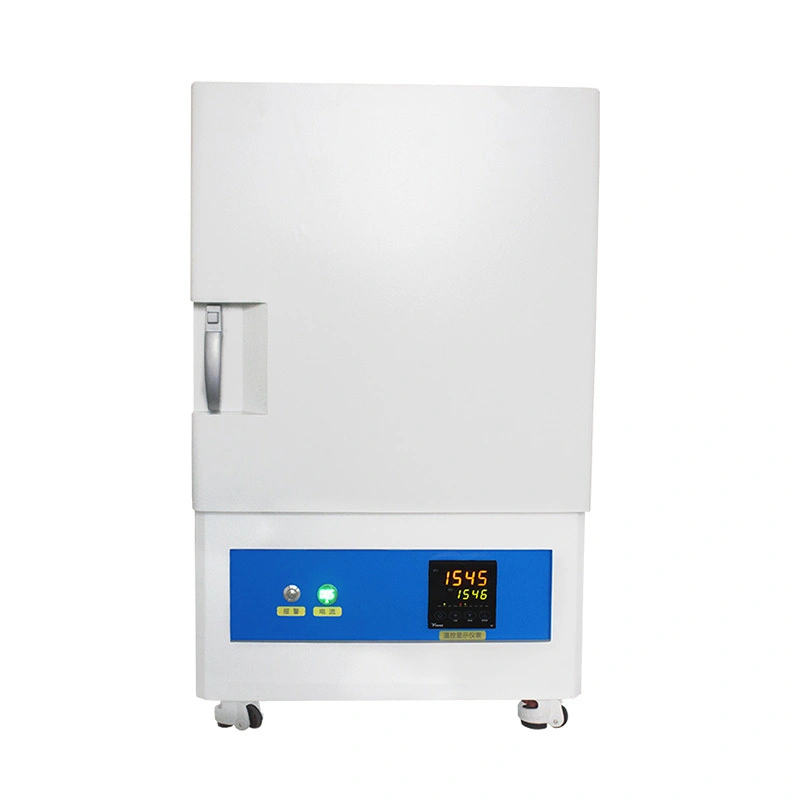

1200 Degrees Celsius Box Type Ceramic Fiber Muffle Furnace
The box type ceramic fiber muffle furnace can be used for heat treatment, high-temperature sintering, metal annealing, and quality testing; It’s widely used in laboratories and enterprises. The hearth is made of ceramic fiber, which features good insulation performance, high temperature stability, and corrosion resistance. It’s available with 1200℃, 1400℃, 1650℃¸1800℃, 1900℃ max operation temperatures.
Technical Specifications
| Performance | Temperature control range | Room temperature -1200 ℃ | |
| Operation temperature | ≤1100℃ | ||
| Temperature control accuracy | ＜1000 ±0.1℃ ； ≥1000±1℃ | ||
| Constant temperature fluctuation | ± 1 ℃ (test point 1000 ℃) | ||
| Heating rate | The recommended heating rate is below 1000 degrees Celsius, ≤ 10 ℃/min, and the fastest heating rate is ≤ 30 ℃/min | ||
| Cooling rate | Above 700 ℃ ≤ 10 ℃/min | ||
| Furnace surface temperature | The surface temperature of the furnace body is less than room temperature+10 (measurement point is 1000 ℃) | ||
| Constitution | External decoration | Cold rolled steel plate, surface resistance coating | |
| Furnace body | Ceramic fiber | ||
| Sensor | K-Type Thermocouple | ||
| Heating element | High-quality alloy resistance wire | ||
| Cooling fan | Axial flow fan | ||
| Furnace structure | Double shell structure with air cooling system | ||
| Controller | Control mode | PID control | |
| Setting representation | Digital setting/digital display | ||
| Overtemperature protection | Integrated controller | ||
| Overtemperature setting | Digital settings | ||
| Operation function | Customized operation/program operation (30 segment program temperature control) | ||
| Additional function | Deviation correction, power outage compensation, lock key function | ||
| Timing device | 1 minute to 99 hours and 59 minutes, as well as 999 hours and 50 minutes digital settings, automatic operation, and fast automatic stop | ||
| Safety | Work environment | RT±5-40℃ | |
| Usage guarantee | Door opening, power outage, over temperature alarm, leakage protection, over temperature protection | ||
|
Specification |
Hearth dimensions | 200*100*80mm（D*W*H) | |
| Overall dimensions | 430*350*520mm（D*W*H) | ||
| Net Weight | 25kg | 1.92L | |
| Working power | 220V50HZ | ||
| Power Consumption | 1.5KW | ||
Ordering Information
|
Unit Model |
Reachable Temperature |
Long-Term Use Temperature |
Furnace Size (D * W * H) |
Volume |
|
MLB-1201 |
1200℃ |
1100℃ |
100*100*100 |
1L |
|
MLB-1202 |
1200℃ |
1100℃ |
200*120*80 |
1.92 |
|
MLB-1207 |
1200℃ |
1100℃ |
300*200*120 |
7.2L |
|
MLB-1212 |
1200℃ |
1100℃ |
300*200*200 |
12L |
|
MLB-1236 |
1200℃ |
1100℃ |
400*300*300 |
36L |
|
MLB-1280 |
1200℃ |
1100℃ |
500*400*400 |
80L |
Features Of Ceramic Fiber Muffle Furnace
Features Of Ceramic Fiber Muffle Furnace
Attention
The heating rate is measured when the temperature is set to 100 ° C below the maximum temperature and running without load. The insulation power is measured under continuous working conditions.
The external dimensions are measured when the furnace door is closed, including the dimensions of the chimney.
The volume of the uniform temperature zone is smaller than the total volume of the furnace.
