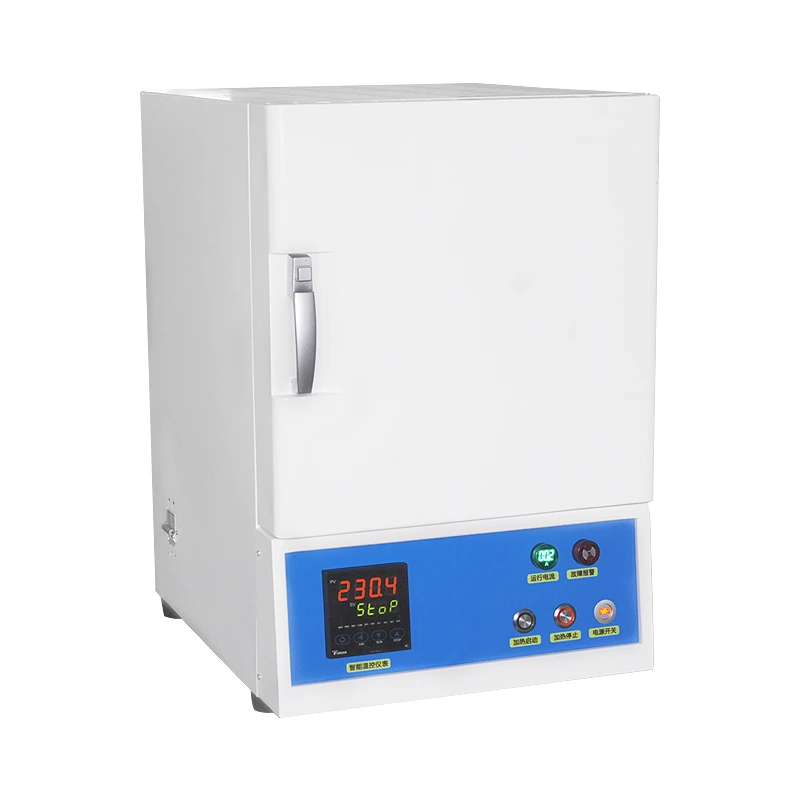

1400 Degree Box Type Ceramic Fiber Muffle Furnace
Technical Specifications
|
Item |
Model |
MLB-1412 |
|
|
Performance |
Temperature Control Range |
Room temperature -1400 ℃ |
|
|
operation temperature |
≤1300℃ |
||
|
Temperature control accuracy |
＜1000 ±0.1℃ ； ≥1000±1℃ |
||
|
|
|||
|
|
|||
|
Heating rate |
Recommended temperature below 1000 ℃ ≤ 10 ℃/min, and the fastest heating rate ≤ 30 ℃/min |
|
|
|
Cooling rate |
Above 700 ℃ ≤ 10 ℃/min |
|
|
|
Furnace surface temperature |
The surface temperature of the furnace body is less than room temperature+10 (measurement point is 1000 ℃) |
|
|
|
Constitution |
External decoration |
Cold rolled steel plate, surface resistance coating |
|
|
Furnace body |
Ceramic fiber |
|
|
|
Sensor |
1400 degree S-type thermocouple |
|
|
|
Heating element |
Silicon carbon rod |
|
|
|
Cooling fan |
Axial flow fan |
|
|
|
Furnace structure |
Double shell structure with air cooling system |
|
|
|
controller |
control mode |
PID control |
|
|
Set representation |
Digital setting/digital display |
|
|
|
Over temperature protection |
Integrated controller |
|
|
|
Overtemperature setting |
Digital settings |
|
|
|
Operation function |
Customized operation/program operation (30 segment program temperature control) |
|
|
|
Additional features |
Deviation correction, power outage compensation, lock key function |
|
|
|
Timer
|
1 minute to 99 hours and 59 minutes, as well as 999 hours and 50 minutes digital settings, automatic operation, and fast automatic stop |
|
|
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
