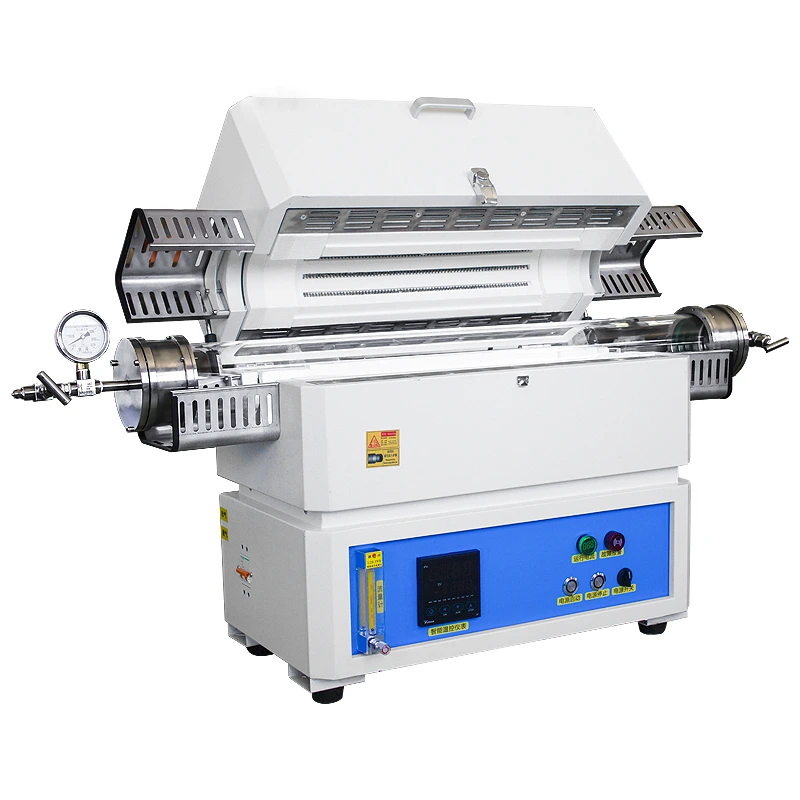

Small Tubular Furnace at 1100 Degrees
Product features
1.The integrated design optimizes the furnace structure and saves space
2.The furnace material is made of high purity alumina ceramic fiber material, which is not easy to deform at high temperature and has good thermal insulation performance
3.Double shell construction, equipped with air cooling system, shell temperature at room temperature +10℃
4.Intelligent PID control instrument, 30 programmable program, constant temperature time control, automatic shutdown, etc
5.Instrument temperature control accuracy is high, accuracy within 1000 degrees ±0.1 ° C; ±1℃ above 1000 ° C
6.With open power function, temperature alarm function, leakage protection function and over temperature protection function
7.Optional large screen paperless recorder to achieve real-time recording of the temperature curve, and with a memory card to analyze and print the experimental data
Specifications
|
Model |
MLG-203-11 |
||
|
Performance |
Quartz tube size |
Φ30*600mm（Pipe diameter optional :40,50,60mm) |
|
|
Temperature control range |
Room temperature -1100℃ |
||
|
Operating temperature |
≤1000℃ |
||
|
Heating zone size |
200mm |
||
|
Temperature control accuracy |
＜1000 ±0.1℃ ; ≥1000±1℃ |
||
|
|
|||
|
Heating rate |
Recommended below 1000 degrees ≤10℃/min, the fastest heating rate ≤30℃/min |
|
|
|
Cooling rate |
Above 700℃ ≤10℃/min |
|
|
|
Furnace surface temperature |
The surface temperature of the furnace body is less than room temperature +10 (the measuring point is 1000℃) |
|
|
|
Composition |
Outer covering |
Cold rolled steel plate, surface resistance coating |
|
|
Furnace |
Ceramic fiber furnace (heating element integrated) |
|
|
|
Sensor |
1200 degrees K type thermocouple |
|
|
|
Heating element |
Iron chromium aluminum alloy resistance wire |
|
|
|
Cooling vane |
Axial fan |
|
|
|
Furnace structure |
Double shell construction with air cooling system |
|
|
|
Controller |
Control mode |
PID control |
|
|
Set representation |
Digital setting/digital display |
|
|
|
Overtemperature protection |
Integrated controller type |
|
|
|
Overtemperature setting |
Digital setting |
|
|
|
Operation function |
Custom run/Program run (30 sections of program temperature control) |
|
|
|
Additional function |
Deviation correction, power failure compensation, lock key function |
|
|
|
Timer |
1 min-99 hours 59 min and 999 hours 50 min digital setting, automatic operation, fast automatic stop |
|
|
|
Vacuum system |
Thermal insulation pipe plug |
2 pieces of alumina material |
|
|
Furnace tube |
Quartz tube |
|
|
