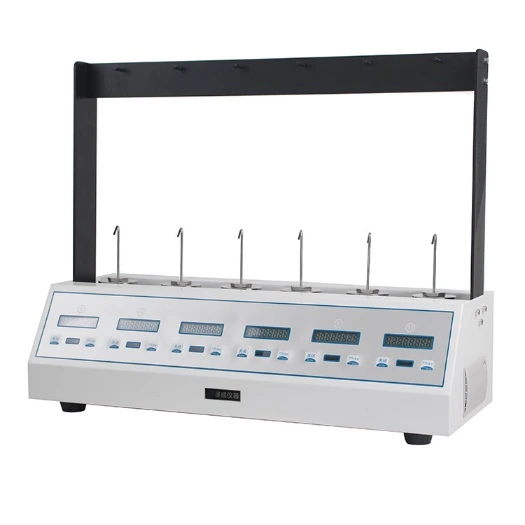

6/8-station Shear Adhesive Tester

The adhesion tester is designed and manufactured in accordance with the provisions of the national standard GB/T 4851-2014, and is applicable to the adhesion test of pressure-sensitive adhesive tapes, medical patches, self-adhesive labels, protective films and other products.

Model: BZ-CN-6/8

Standards:GB/T 4851-2014, ASTM D3654, JIS Z0237

Inquiry

Write a Review

Features

• Test plates and test weights designed in strict accordance with GB/T 4851-2014 to ensure the accuracy of test data

• The system is controlled by microcomputer and equipped with PVC operation panel

• Thin film keys and LCD display, convenient for users to quickly conduct test operation and data viewing

• Six test stations can conduct multiple groups of test items at the same time

• Automatic timing, locking and other functions further ensure the high accuracy of test results

• After the test, each station automatically prints the test results

Test principle

Hang the test plate with the sample vertically on the test frame, and hang the weight with the specified weight at the lower end. Test the ability of the adhesive tape to resist pulling off with the displacement of the sample after a certain time or the time when the sample completely disengages.

Configurations

Standard configuration: host, micro printer, weight, triangle hook, test plate, standard pressure roller

Optional parts: NIST SRM1810A fiberboard, horizontal test accessories: horizontal test rack, weight, loading plate, etc

Specifications

Model	BZ-CN-6	BZ-CN-8
Standard press roll	2000 g ± 100 g
Weights	1000 g ± 5 g（Weight including triangle hook）
Test plate	125 mm (L) × 50 mm (W) × 1.1 mm (D)
Timing range	0 ~ 10000h（standard configurations）
Workstation	6 pcs	8pcs
Overall dimensions	600 mm (L) × 240 mm (W) × 600 mm (H)
Power Supply	AC 220V 50Hz / AC 120V 60Hz
Net weight	23 kg
