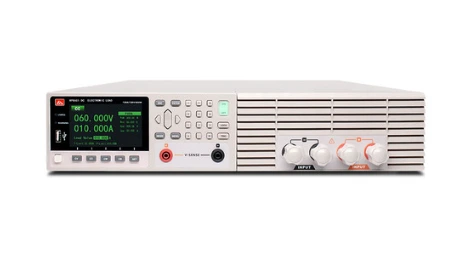

600W-1200W Programmable DC Electronic Load

Introduction 1. The HP8XXX series DC electronic load is a high-precision, programmable DC electronic load controlled by high-performance microprocessors 2. Adopt a 3.5-inch TFT true color LCD display with Chinese and English menus 3. With 4 basic working modes (CC/CV/CR/CW) and 10 functional modes 4. Equipped with comprehensive protection functions, including overheating protection, overcurrent protection, overvoltage protection, overvoltage protection, and loop oscillation protection Built in rich interfaces, including RS232, LAN, USB, and analog interfaces, for remote control and data collection and analysis

Feature

· 500kHz high-speed voltage and current sampling rate

· High accuracy voltage and current measurement

· Equipped with remote four-wire compensation

· Unique current ripple, voltage ripple real-time display

· Fast loop response and current swing rate

· Programmable time step up to 10μS

· Real-time display of loaded power and resistance

Testing function

The HP8XXX series electronic load has four testing modes: CC, CV, CR, CW, and also has 10 functional modes: short circuit testing function; Dynamic testing function; Overcurrent protection test mode; Load effect mode; Battery testing mode; Dynamic scanning mode; Timing testing mode; Overvoltage protection test mode; LIST mode; AUTO mode; LED power mode
