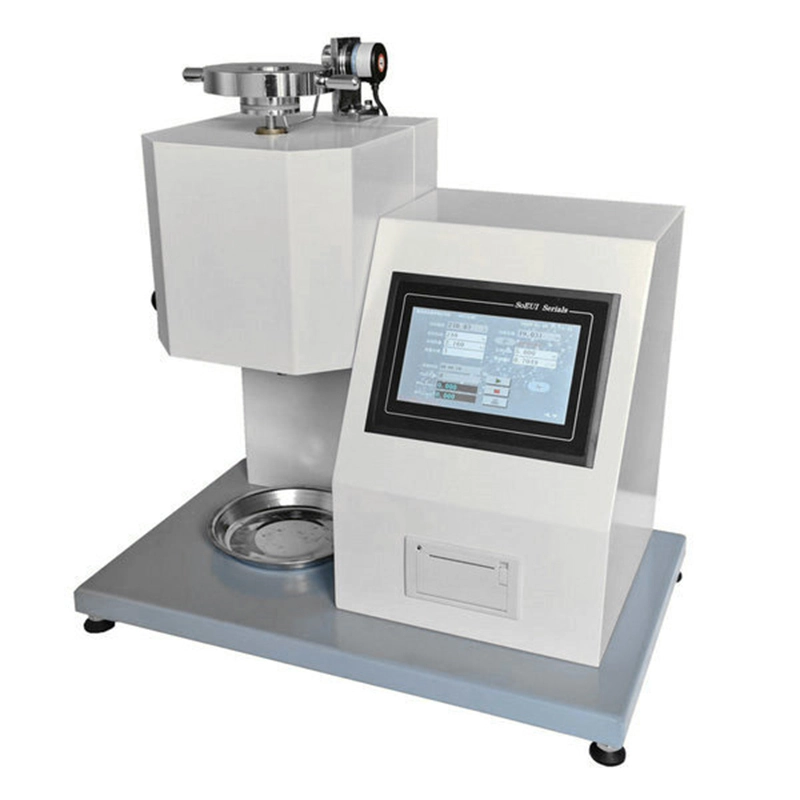

Advanced melt flow indexer ISO1133 MFR apparatus-1700538823262245
Standard
GB/T3682, GB/T9643, JB/T5456, ISO1133
Model: MFR-400E
Features
1. 7-inch color touch screen for input, with a good human-machine interface and sensitive touch control, it is easy to operate and easy to use for testing personnel who first come into contact with such instruments.
2. The 5000 line pulse encoder measures deformation with low
resistance, high sensitivity, and fast response.
3. A complete set of eight specifications
of weights meets the load requirements of different material tests, with
mechanical loading methods and reliable data.
4. Independent furnace body, filled with
asbestos inside, with a hollow design between the outside and the box, reducing
heat transfer, energy consumption, and preventing burns.
5. The overall covered heating sleeve
ensures uniform heating and minimal temperature fluctuations.
6. Hard alloy high-temperature resistant
material barrel, corrosion-resistant, high-temperature deformation free.
7. The brass thermal conductivity rod has
high thermal conductivity, short heating and temperature recovery time, and
high experimental efficiency.
8. The scraping tool is made of 65Mn
material, which is durable and does not deform after long-term use. The
scraping is thorough and has no residue.
Specifications
1. Temperature control range: room~450 ℃
2. Discharge port diameter: Φ 2.095 ± 0.005
mm
3. Outlet length: 8.000 ± 0.025 mm
4. Loading cylinder diameter: Φ 9.550 ±
0.007 mm
5. Loading cylinder length: 152 ± 0.1 mm
6. Piston rod head diameter: 9.474 ± 0.007
mm
7. Length of piston rod head: 6.350 ± 0.100
mm
8. Constant temperature accuracy: ± 0.2 ℃
9. Temperature recovery time: ≤ 4 minutes
10. Timing range: 0.001s-999.999s
11. Measurement range:
Quality method (0.1-2500g)/10min
Volume method (0.01-5000) cm ³/ 10min
12. Input method: touch screen
13. Printing test reports: supported
14. Scraping method: automatic
15. Test methods: Mass method (MFR), Volume
method (MVR)
16. Instrument dimensions: 550mm × 350mm ×
620mm (length × wide × High)
17. Standard test load: eight
specifications
Standard configurations
|
No. |
Item |
Qty |
Remark |
|
1 |
Main machine |
1 |
|
|
2 |
Weights |
1 |
4pcs in total |
|
3 |
Weight tray |
1 |
|
|
4 |
Loading hopper |
1 |
|
|
5 |
Mouth cleaning rod |
1 |
|
|
6 |
Loading rod |
1 |
|
|
7 |
Barrel cleaning rod |
1 |
|
|
8 |
Piston rod |
1 |
|
|
9 |
Tungsten carbide die |
1 |
|
|
10 |
Level gauge |
1 |
|
|
11 |
Level bracket |
1 |
|
|
12 |
Sampling disk |
1 |
|
|
13 |
Power cord |
1 |
|
|
14 |
Scraper |
1 |
|
|
15 |
Instructions |
1 |
|
|
16 |
Packing list |
1 |
|
|
17 |
Certificate of conformity |
1 |
|
