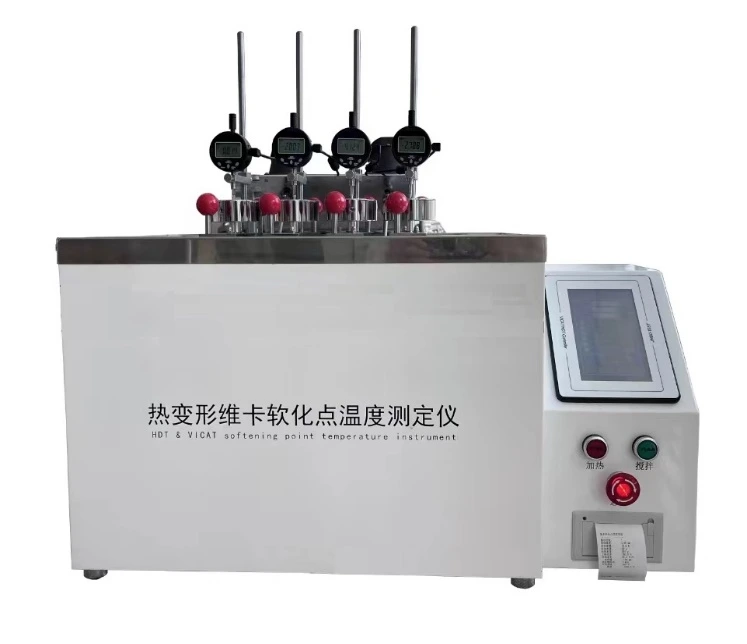

ASTM and ISO Hot Deformation Vicat Tester

Hot Deformation Vicat Softening Point Tester is mainly used for measuring the thermal deformation temperature and Vicat softening point temperature of non-metallic materials. This instrument is easy to operate and has precise control, and is widely used in colleges, research institutions, and product quality supervision and inspection units.

Standards

GB/T 1633, GB/T 1634, GB/T 8802, ISO 2507, ISO 75, ISO 306, ASTMD 1525, ASTMD 648.

Inquiry

Write a Review

Technical Indicators

Temperature Control Range: room temperature~300 ℃

Maximum Temperature Error: ± 0.5 ℃

Heating Rate : 50 ℃/h with an error of ± 0.5 ℃/6min,120 ℃/h error ± 1.0 ℃/6min

Measurement Method for Deformation: digital micrometer

Input Method: touch screen

Temperature Measurement Point: 1

Number of Test Racks: 4

Deformation Measurement Range: 0-10mm

Maximum Deformation Error: ± 0.005mm

Deformation Resolution: 0.001mm

Sample Support Span: 64mm, 100mm

Medium Used: Methyl-silicone oil or transformer oil

Cooling Method: Natural cooling above 150 ℃, water cooling below 150 ℃ or natural cooling

Model: Desktop

External Dimensions of the Host: 560 * 620 * 520mm

Configuration Checklist

1 Thermal deformation and Vicat softening point temperature tester host,4 Sample holder,16 1000g weight, 4 932g weight, 8 200g weight, 4 100g weight,4 50g weight,8 20g weight,4 10g weight,4 5g weight, 8 2g weight,4 1g weight,4 Basic weight (load rod)(already installed),4 Vicat test needle,4 Pressure head for hot deformation testing,4 Micrometer, 1 User manual, 1 Packing List, 1 Certificate of Conformity.
