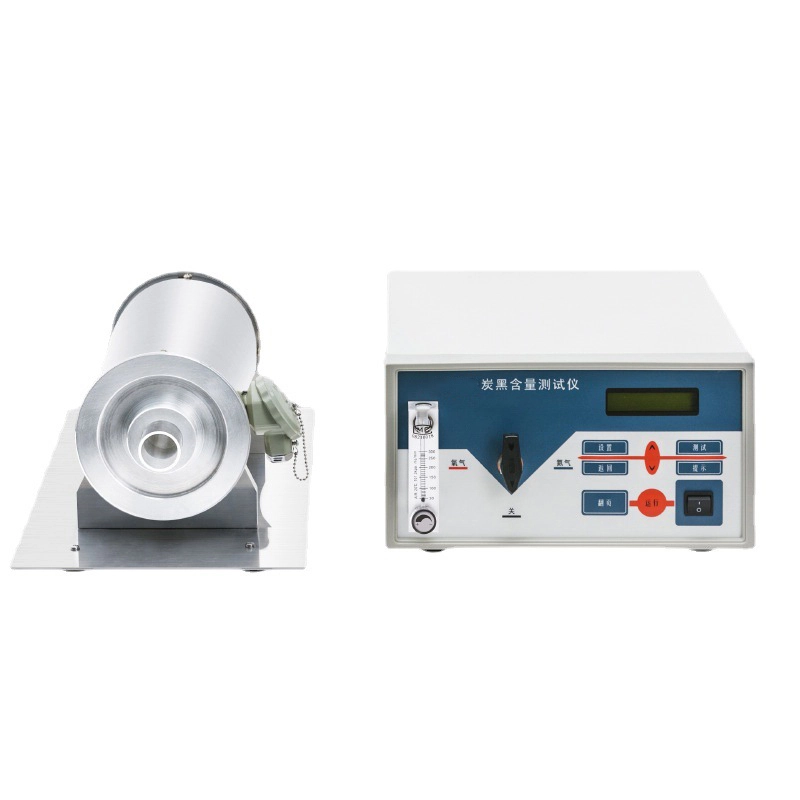

Carbon black content tester IEC 60811-4-1 ASTM D1603 ISO 6964
Model: TH-3500
Standards
ISO 6964, GB/T 13021, IEC 60811-4-1, GB/T 2951.41, JTG E50 T1165,
ASTM D1603-2012, CJ/T 125-2000, GB/T2951.41-2008 and other standards (not limited to the above standards)
The testing of carbon black is obtained through weight analysis of the sample after high-temperature decomposition under nitrogen protection.
Features
Easy using, accurate measurement, and automatic temperature control.
The parameter settings can be segmented and set according to needs
The furnace body is separated from the main engine for fast heat dissipation.
Automatic temperature control, convenient to use, simple to operate, reliable to work, and accurate measurement.
Specifications
1. Display mode: LCD screen
2 Furnace size: Φ31 × 350 ± 5mm
3. Quartz tube size: Φ 35 * 400 mm
3. Heating element: High temperature alloy wire
4. Heating zone length: 200mm
5. Length of constant temperature zone: 150mm
6. Working temperature: Room temperature~1100 ℃
7. Temperature control method: Intelligent programmable control
8. Working power supply: AC220V/50Hz/60Hz
9. Sensor sensitivity: 0.1 ℃
10. Gas path control: Two paths
Standard packing list
|
No. |
Item |
Qty |
|
1 |
Controller |
1set |
|
2 |
Heating furnace |
1set |
|
3 |
Burning boat |
10pcs |
|
4 |
Power cord |
1pc |
|
5 |
10A fuse |
5pcs |
|
6 |
Sensor |
2pc |
|
7 |
Hook |
1pc |
|
8 |
Tweezers |
1pc |
|
9 |
Rubber tube |
1ea |
|
10 |
Rubber stopper with glass tube |
2pcs |
