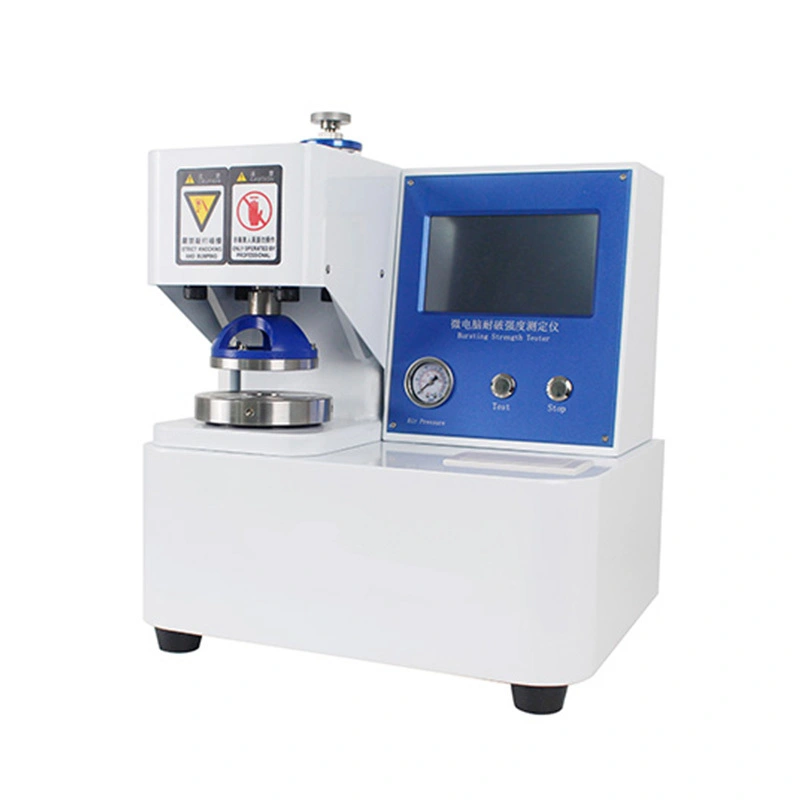

Automatic Bursting Strength Tester( Mullen Tester)
This equipment is a specialized tester used to determine the bursting strength of various kinds of materials under relevant international and industry standard.
Product Specifications
|
Measure Range |
50kpa~1600kpa/200kpa ~ 5600kpa, ≤±0.5% |
|
Pressure Resolution |
0.1kpa |
|
Deformation Measure Deviation |
≤1mm |
|
Concentricity of top/bottom plate |
≤0.25mm |
|
Pressure Of Film Convex Disk |
(9±0.2)mm /(30±5)kpa |
|
Oil Feeding Rate |
95±5ml/min |
|
Plate Dia. |
Top:31.5±0.5mm, bottom: 31.5±0.5mm |
|
Deformation Monitor |
Three-dimensional |
|
Clamping Positioning |
360° free orientation positioning test probe |
|
Probe Control |
Intelligent control pressure relief system |
|
Driving Mechanism |
All-steel chain drive to prevent detection deviation caused by compression deviation |
|
Power Source |
Full-sealed solid power source |
|
HMI |
Touch screen, real time display of test data |
|
Clamping Force |
＞690kpa (adjustable) |
|
Units |
Kg/cm2,kpa,lbf/in2 |
|
Printer Set |
Modular all-in-one thermal printer |
|
Working Condition |
Temp.(20±10)ºC,RH＜85% |
|
Overall Size |
400*400*500mm |
|
Net Weight |
45kg |
|
Air Source |
Prepared by customer |
Trouble Shooting
|
Failure situation |
Causes |
Solution |
|
The motor does not rotate after turn on power supply |
Power supply equipment or line failure |
Repair the power supply equipment |
|
The test piece cannot be broken during the test |
Insufficient amount of glycerin in hydraulic cylinder |
Glycerin supplement |
|
No display on the display |
Destroyed power button |
Replace button |
Features
Touch screen operation, real time dynamic curve display.
No film burst even under zero load, no oil leak, much time saving, lower cost.
Calibrated by imported calibration tool, equipped with calibration module, free calibration at any time.
Single piece sample min grab peak 1.5kg.
Standard Configuration
1 host;
4 rolls of printing paper;
silicone oil 1 bottle;
high-pressure rubber films 2pcs;
5 imported Japanese high-pressure calibration films;
1 specialized wrench
Special Consumables For Paper And Cardboard Burst Tester
Place of Origin: Japan; Specification: 5cm*5cm
Standard value: high pressure 1165kpa; low pressure: 953kpa
1kpa=0.145LbS/in2=0.0102kgf/cm2
1kgf/cm2=98kpa=14.2LbS/in2
Used in oil cup; Specification: 250mL/bottle
Operation Instructions
Prepare the test piece:
1. Select test pieces from the same batch of samples.
2. Use a standard cutter and a test piece machine to cut the standard specification test pieces required for the test.
Confirmations
1. Confirm whether the machine is connected to a power supply that meets the specifications (if the voltage is unstable or the instrument is garbled, please turn off the power and restart it).
2. Confirm whether there is glycerin in the glycerin cup and whether the rubber film is damaged (see the appendix for specific operations).
3. Confirm whether the air pressure is normal. (Whether the air pressure source is above 3bar)
Operation instructions
Connect power supply and turn on the power, display will run automatic calibration procedure and reset;
Make sure there is 2/3 full cup of glycerin, make sure the screw nut is fastened
After checking, place the sample on the center of the platens;
Press reset key, make the display value is zero;
Then press “Start” key to enter test, can press emergency stop key if any special condition happened, also can press “Stop” key to let instrument stop;
After first test, press “Save” key to save the first group data; then perform the second test, then press “Save” key to save the second group data; And so on, can save up to 12 group data; After that can revoke the 12 groups data and print out;
Pressing the “Reset” key by 3 secs can delete the data and do new test.
Rubber film replacement
Use wrench to take out the lower platen, take out the rubber film, after fill in glycerin replace with new rubber film, press the rubber film with upper platen and then lock with lower platen locking ring.
After rubber film is replaced, release the screw nut on the cup, press the rubber film by hand to exhaust the bubble in the oil cup till no any bubble, then fixing the screw nuts on the cup.
Calibrations
1. Correction device: special corrector for rupture machine
2. Calibration period: one year
3. Calibration procedures:
1. Turn on the power button of the monitor and press the reset button to reset the monitor.
2. Remove the glycerin cup and connect the calibration pressure converter.
3. Place a wooden board between the upper and lower pressure plates, and tighten the platens to press tightly, turn on the power switch with left hand, and press the handle clockwise with right hand until the display shows about 10 kgf/cm2, immediately turn off the power of the motor and turn it clockwise of the belt to let monitor shows: 20 kgf/cm2, 40kgf/cm2, 60 kgf/cm2, 80 kgf/cm2, 100 kgf/cm2.
4. Observe whether the value displayed on the control panel is the same as the value displayed on the calibrator.
Maintenance
1. Cleaning: Keep the machine clean at all times, and wipe the machine with cotton cloth before and after each use to keep it clean.
2. Anti-rust: Spray anti-rust oil on the surface of the machine once a week (note: wipe off after 2 hours).
3. Engine oil: Lubricate the transmission parts (such as bearings) of the machine regularly every month (you can choose ordinary lubricating oil).
4. Regularly check whether the gear oil of the reducer needs to be refilled or replaced every year.
5. Glycerin should be completely replaced every six months.
