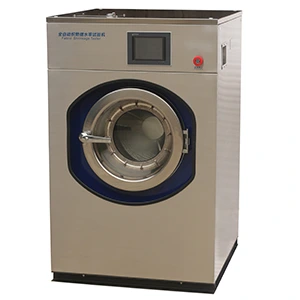

Automatic Shrinkage Washer

The automatic shrinkage tester conforms to the common test standards such as ISO6330-2012, GB/T8629, GB/T11051, and is applicable to the washing shrinkage test of various cotton, wool, hemp, silk, chemical fiber fabrics, clothing or other textiles.

Model: FZ-089E

Inquiry

Write a Review

Features

1. Open program is adopted, which can be edited by users themselves, and 23 sets of standard test programs specified in ISO standards and International Wool Bureau standards are stored. Users can directly select corresponding programs according to the standard provisions through the control panel, and the instrument can perform the test automatically, or use the manual function to perform single operation;

2. The full-touch control screen is adopted, with high reliability and long service life;

3. The motor is controlled by frequency converter, and the conversion from high speed to low speed is stable, the motor temperature rise is small, and it is not easy to be damaged;

4. The instrument washing drum and outer cylinder are made of high-quality stainless steel plate, which has the advantages of smoothness, smoothness and corrosion resistance;

5. The washing drum and the instrument box are connected by a suspended vibration avoidance device. When the washing drum rolls and vibrates violently, it can still maintain the stability of the instrument box and will not cause the vibration of the whole machine.

6.Water inflow can be controlled through the water level gauge.

Specifications

1. Inner drum diameter: 520 ± 1mm

2. Inner drum depth: 315 ± 1mm

3. Outer drum diameter: 554 ± 1mm

4. Number of lifting plates: 3

5. Lift plate height: 53 ± 1mm

6. Elevator spacing: 120 °

7. Soft washing: forward rotation (3 ± 0.1) s, stop (12 ± 0.1) s,

8. Reverse (3 ± 0.1) s, stop (12 ± 0.1) s

9. Slight washing: forward rotation (8 ± 0.1) s, stop (7 ± 0.1) s,

Reverse (8 ± 0.1) s, stop (7 ± 0.1) s
