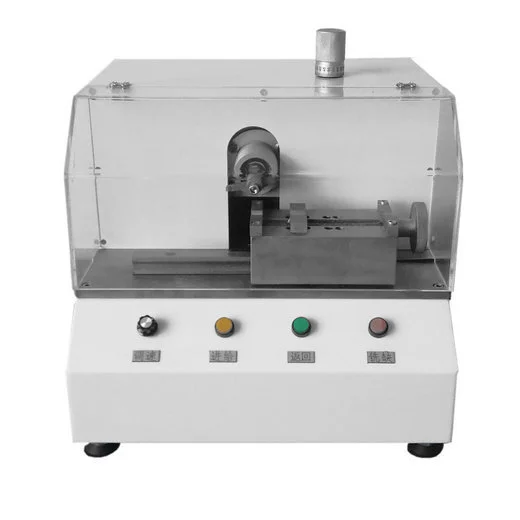

Automatic Standard Notch Making Prototype
The automatic notch making prototype is a standard notch spline used for impact testing of non-metallic materials such as plastics, organic glass, fiberglass, etc., prepared by mechanical processing methods for simply supported beams and cantilever beams.
Standard Sample:
Type A: 45 ° ± 1 ° R=0.25 ± 0.025mm
Type B: 45 ° ± 1 ° R=1.0 ± 0.025mm
Type C: 45 ° ± 1 ° R=0.1 ± 0.025mm
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Main Technical Parameters
1. Sample types: Type A, Type B, Type C
2. Single sample quantity: 1-24
3. Tool length: 50mm
4. Tool material: Hard alloy
5. Spindle speed: 1250r/min
6. Automatic feed rate: 0-100mm/min adjustable
7. Spindle motor power: 40W
8. Automatic feed motor power: 40W
9. Overall dimensions of the machine: 380 × 300 × 320mm
Configuration Checklist
|
Order Number |
Name |
Number |
Remarks |
|
1 |
Host |
1 |
|
|
2 |
Notch cutting tool |
3 |
Optional non-standard sizes |
|
3 |
Attachment |
1 |
|
|
4 |
Instructions |
1 |
|
|
5 |
Certificate of conformity |
1 |
|
