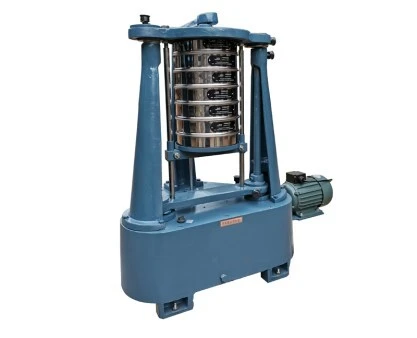

Beat type vibrating screen machine Tapping standard vibrating sieve machine
Product Introduction
The Beat type vibrating screen machine makes the standard sieve jacketed sieve convenient and flexible, tightens firmly, oscillates horizontally during operation, and gently beats it at certain intervals to screen the sample more efficiently. It is suitable for the screening of materials in laboratory units and factory laboratories of geology, metallurgy, combustion, construction, cement, grinding wheel manufacturing, medicine, powder shop, national defense and other departments.
Technical parameters
1. Model : ZY-SF-P200
2. Sieve diameter : 200mm
3. Number of sieve layers: 7 layers
4. Sieve pore size : 2-200 mesh
5. Shake times: 290 times/min
6. Hammer Strikes :156 times/min
7. Slap stroke :38±6mm
8. Power : 0.37kw
9. Motor speed: 1400r/min
10. Dimensions: 900×450×750mm
11.Weight ：180kg
