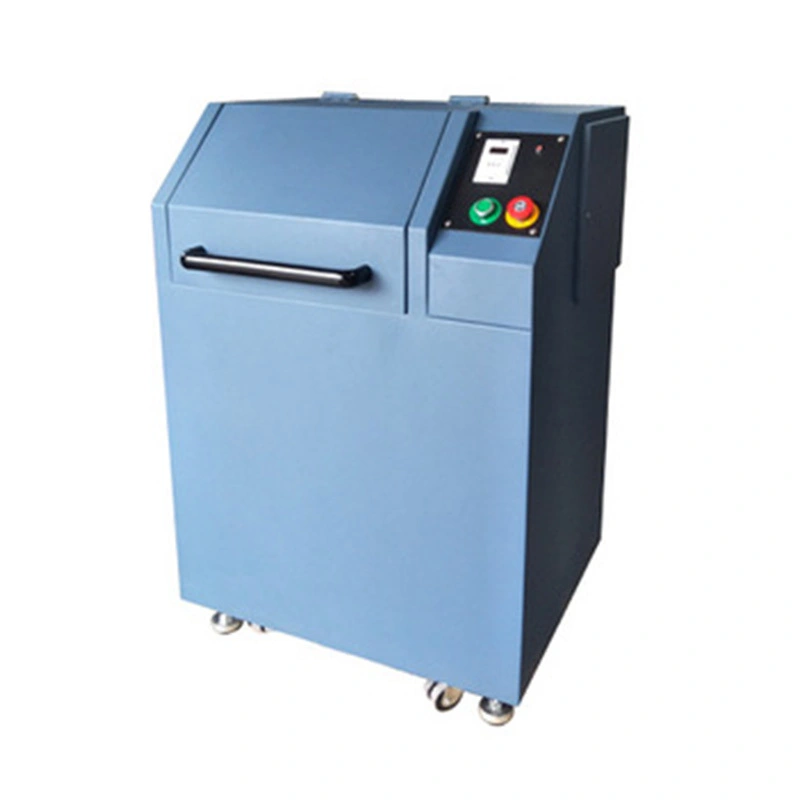

ZY-ZM Vibration Mill (For Spectrometer Sample Preparation)
The vibration mill is a specialized machine to grind the sample into the required fineness thus for spectrum analysis in laboratory, it’s widely used in construction material, steel, minerals industry. It can be used for grinding of coke, coal, minerals, ores, diamonds, metal oxides, ceramics, silicates, cement, slag, slag, concrete, soil, plant materials, etc.
Technical Specifications
| Grinding Disc Type | Tungsten carbide / chrome steel / high manganese steel / corundum / zirconia |
| Application | Crushing, mixing, grinding |
| Sample Type | Medium-hard, hard, brittle, fiber-containing |
| Sample Container Volume | 100 ml(50ml/200ml/300ml/400ml optional) |
| Feeding Sample Size | ＜13 mm |
| Feeding Quantity | ≥20g |
| Finished Size | ＜75μm（200 mesh） |
| Control Mode | time relay |
| Grinding Time Set Range | 1s ~ 999s |
| Grinding Rate | 0.5 ~ 3min(can be extended on request) |
| Clamping Way | Quick clamping |
| Overall Size | 720×580×1060mm |
| Net Weight | Approx 210kg(not include grinding disc) |
| Power Supply | AC 380V±5%,50Hz,3 phase 5 wire |
| Motor Power | 1.5 kw( or 1.1 kw) |
| Motor Rotation | 1400 r/min(or 935 r/min) |
| Working .Condition |
Recommended working environment: RT~40℃;If the operation temperature is below minus or in plateau area, please inform the manufacturer in advance. |
Features
Quick clamping, 1-key start
Sealed grinding space, less noise outside
Sample bowl sealed with O type ring, enable no loss during grinding process
Eccentric vibration mechanism enable shorter higher grinding efficiency, better performance.
No direct connection between eccentric device and motor shaft, enable longer tooling life of motor
Limit switch equipped at protection gate, if the gate is not well closed, machine can’t start; on other hand, when in running if the gate id opened, the power will cut off automatically
Support feet and swivel wheels at the bottom for easier movement.
