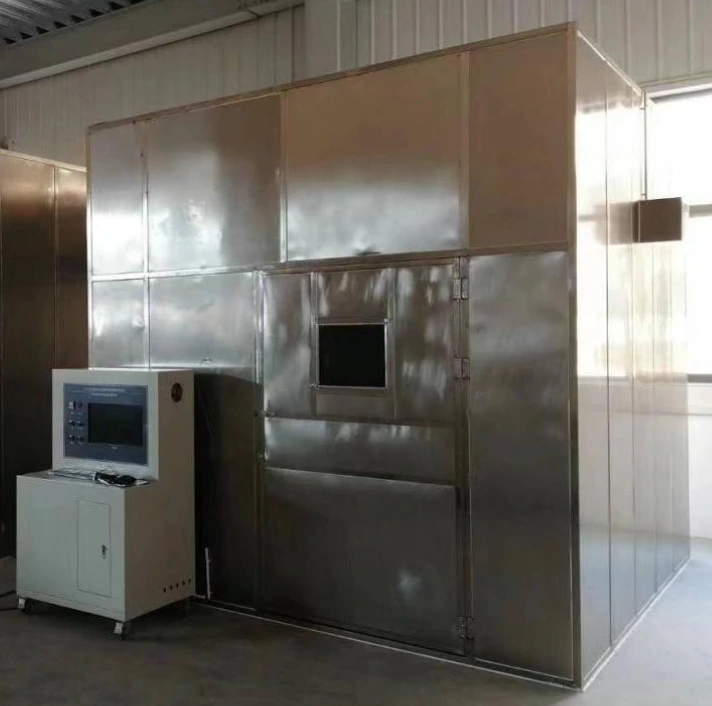

Cable Combustion Smoke Density Testing Machine

1. Equipment composition

The entire instrument consists of a sealed test chamber, a photometer measurement system, an alcohol tray, a combustion system, an igniter, a test box, a cable support, a temperature measuring instrument, and smoke density testing software; The circuit is developed using a microcontroller, with high technical content and stable performance. This instrument is suitable for all cables and is widely used by production factories and research and testing units in the wire and cable industry. The test chamber is a test cube with a volume of 27m³_.

2. Detailed technical parameters

1. Combustion chamber: Internal size: 3M × 3M ×  3M has a total of 27 cubic meters. It can be a brick wall structure or a steel plate structure, chosen by the customer.

2. Optical measuring device:

A. Imported quartz halogen light source: nominal power 100W, nominal voltage 12V, nominal light return: 2000-3000Lm.

B. Receiver: It is a silicon photocell, with a transmittance of 0% indicating no light passing through, and a transmittance of 100% indicating complete light passing through without obstruction.

3. Standard ignition source:

A. The ignition source is 1.0L alcohol.

B. Alcohol tray: stainless steel with a bottom surface of 210 × 110mm, top surface 240 × 140mm, height 80mm.

4. Smoke mixing: Use a desktop fan to evenly distribute smoke in the combustion chamber.

5. Blank test: burn the Alcohol burner to make the temperature of the combustion chamber reach 25 ± 5 ℃.

6. Temperature measuring device: A temperature sensor is installed at a height of 1.5M from the ground and 0.5M from the wall on the inside of the door.

7. Including a set of transmittance measurement software that can output curves and reports.

8. Including one computer (provided by the printer).

9. Power: 220V, 4KW. (Should indicate the total power of the device).

10. (Smoke density) 0-924 6-speed automatic shift.

11. Measurement range: 0.0001-100%;

12. Measurement accuracy: ± 3%;

13. Working voltage: 200-240V 50Hz;

14. Environmental temperature: room temperature -40 ℃.

15. Relative temperature: ≤ 85%;

16. Working environment: When the instrument is running, it should avoid direct sunlight and there should be no forced air flow.

3. Other parameters and introduction

1. The front door is equipped with a window and an opaque sunshade that can block inspection activities.

2. The bottom of the square box is equipped with an automatic ignition device, and the top is equipped with an internal pressure regulating device.

3. Light source: 12V incandescent lamp with a wavelength of 400-750nm.

4. Receiver: It is a silicon photocell, with a transmittance of 0% indicating no light passing through, and a transmittance of 100% indicating complete light passing through without obstruction.

5. Combustion system: composed of a regulator valve, filter, regulating valve flow meter, and burner.

6. Burner: composed of an igniter and an alcohol disk, placed in the center of the sample.

4. Main configuration

1. Desktop computer (including display screen)   1 unit

2. Opaque template   1 piece

3. Spare light bulb   2 pieces

4. instruction   1 copy

5. Certificate of conformity   1 sheet

6. Calibration lenses   2 pieces

7. Printer   1 unit

8. Analysis software   1 set

9. Active shutter   1 piece
