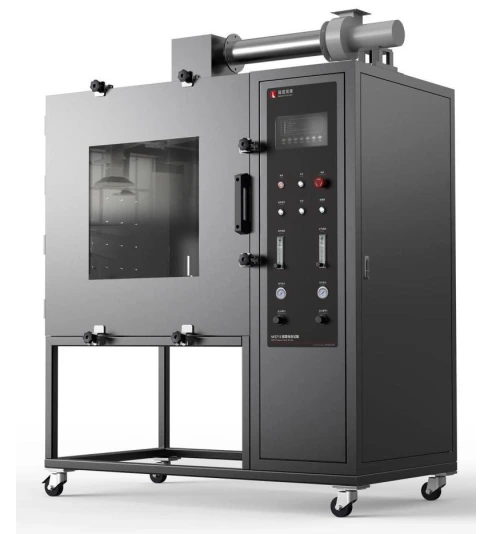

NES 713 Smoke Toxicity Tester

Features

Steel structure box, frame structure thickened steel sheet fabrication

Large observation window, painted with a dark color on the inner wall of the box, for easy observation of the sample

Combustion condition.

The polytetrafluoroethylene adhesive treatment on the box wall reduces the gas generated during the combustion process

Chemical corrosion of substances on the inner wall of the box

Install a stirring fan inside the box to balance the combustion smoke inside the box

Install smoke exhaust fans and stainless steel smoke exhaust pipes on the top of the box, and the test is completed

After that, it can automatically open and exhaust the smoke inside the box

12 sampling positions are reserved in the box, which can be used with gas colorimetric reaction tubes or other devices

Used together with gas analyzers

Introduction of industrial design concepts in terms of structure, appearance, and interface design, integration surface

Plate structure, easy to operate, user-friendly interface, in line with ergonomics and operation

Habit, beautiful and generous appearance

The pre mixed spray lamp made of pure copper meets the standard requirements and can be provided with a height of 100~125mm (blue) flame with a temperature of 1150 ± 25 ℃ at its hottest point

High voltage pulse automatic ignition, stable and reliable ignition, high safety

Equipped with imported brand K-type thermocouples for temperature detection

Stainless steel sample mesh disk, with adjustable ignition position

Equipped with imported precision rotor flowmeter to control gas and air flow rates

Equipped with brand pressure gauges and pressure regulating valves to regulate gas pressure, equipped with solenoid valves to control combustion

Gas on/off to ensure the safety of equipment use.

Programmable logic controller (PLC)+touch screen control, which can achieve automatic control/detection/calculation/Data storage

Automatic waste removal mode, which can be automatically eliminated upon completion of testing under program pre control

Smoke generated during testing

Manual/automatic testing mode, freely selectable

Specifications
