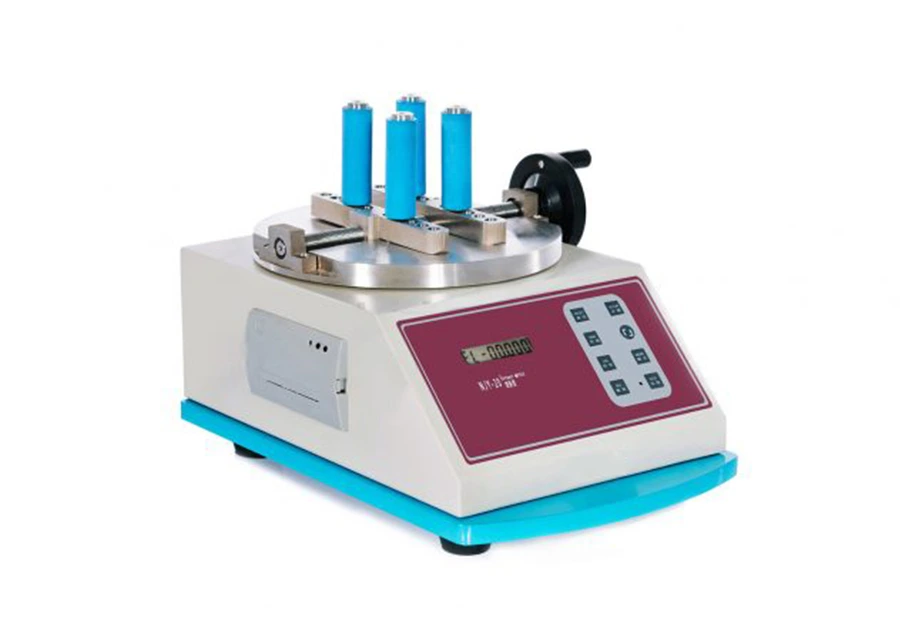

Cap Torque Tester
Model: BZ-CTT-20
Standards:GB/T 17876,BB/T 0025,BB/T 0034(GB/T 14803),ASTM D 2063,ASTM D 3198, ASTM D 3474
Features
Microcomputer control, CELTRON brand imported high-precision torque sensor, LCD display
PVC operation panel, automatic peak holding
Dual measurement mode of locking force and opening force
Standard test unit for test results, without manual conversion
Test times can be set, data deletion, statistical functions
Automatic clearing, fault prompt, overload protection
Test parameter power-off memory, report micro-print output
Standard RS232 interface communication function, professional software
The network transmission interface supports local area network data centralized management and
Internet information transmission
Specifications
|
Load Cell Capacity |
20 Nm (Standard), 5Nm, 40 Nm, 50Nm (Optional), |
|
Accuracy |
±0.5% |
|
Resolution |
0.0001Nm |
|
Clamp Range |
Dia. 5 mm ~ Dia. 170 mm (Diameter) |
|
Statistical capacity |
1~9, no quantity limit if use professional software,. and multi-units and statistical data analysis is available. |
|
Instrument Dimension |
350 mm (L) x 240 mm (W) x 140 mm (H) |
|
Power Supply |
AC 220V 50Hz |
|
Net Weight |
19 kg |
