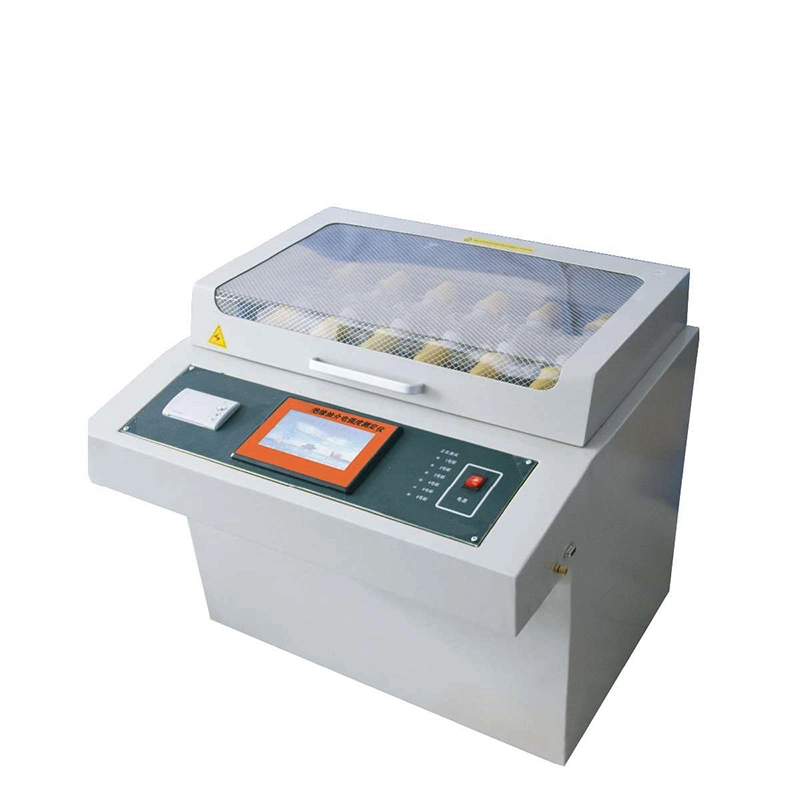

Dielectric Strength Tester for Insulating Oil IEC156

This equipment is used to test the degree of physical contamination of insulating oil by water and other suspended substances.

The applicable standards for the dielectric strength tester of insulating oil of this instrument are GB/T507, DL/T429.9, IEC 156, It can be widely used in electric power, petroleum, chemical and other industries.

Inquiry

Write a Review

Features

Using a microprocessor and integrating six cups, automatically completes operations such as boosting, holding, stirring, static discharge, calculation, printing, etc. It can perform oil circulation withstand voltage tests within the range of 0-100kV.

Large screen LCD display with Chinese character menu prompts.

Easy operation, operator only needs to make simple settings. The instrument will automatically complete the pressure test of 1-6 oil samples according to the settings. For each oil sample, the breakdown voltage value and number of cycles will be automatically stored. After the test is completed, the thermal printer can print out the breakdown voltage value and average value of each oil sample.

Power off retention, capable of storing 100 experimental results and displaying the current ambient temperature and humidity.

Using a microcontroller control for constant speed boosting, the voltage frequency is accurate to 50Hz, making the entire process easy to control.

Equipped with overvoltage, overcurrent, limit and other protections to ensure the safety of operators.

Equipped with temperature measurement display function and system clock display.

Standard RS232 interface, capable of communicating with computers.

Specifications

Output voltage: 0-100kV (optional)

Voltage distortion rate: ＜ 3%

Boosting speed: 0.5~5kV/S (adjustable)

Quiet time: 15 minutes (adjustable)

Boost interval: 5 minutes (adjustable)

Boost frequency: 1-6 times
