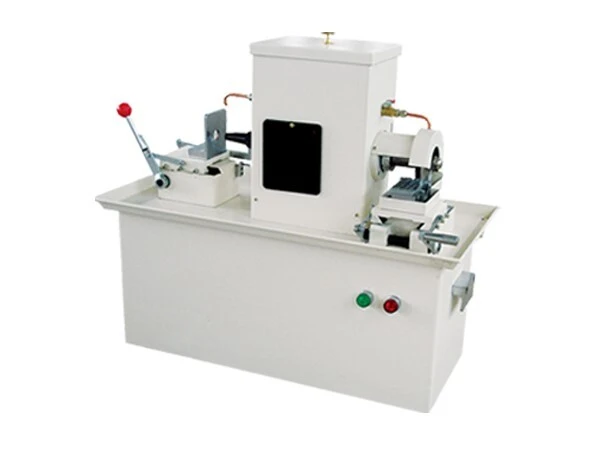

Double-head fast rubber slicer Rubber Specimen Cutting Machine
1.Prodction introduction
The XS-QP-1400 dual head rapid slicing machine is used for cutting plastic specimens in rubber factories and rubber research institutes. It uses a 16 ring cutter and 2 single blade circular cutters to cut standard specimens with a diameter of 16mm and a thickness of 10mm. The tool does not need to be replaced, and the operation is convenient. The appearance and internal structure have been redesigned, making the performance more reliable and the shape more beautiful.
Technical parameters
1. Spindle speed: 1400r/min
2. Travel: Ring cutter drag plate: 65mm
Round knife drag plate: 50mm
3. Aperture of Ring Knife: ¥ 16mm ± 0.5mm
4. Single blade round cutter: ¥ 100mm x 20mm x 1mm
5. Power supply: AC380V ± 10% 50Hz
6. External dimensions: 800mm x 355mm x 590mm
7. Net weight: 90kg
