Double head rapid slicer

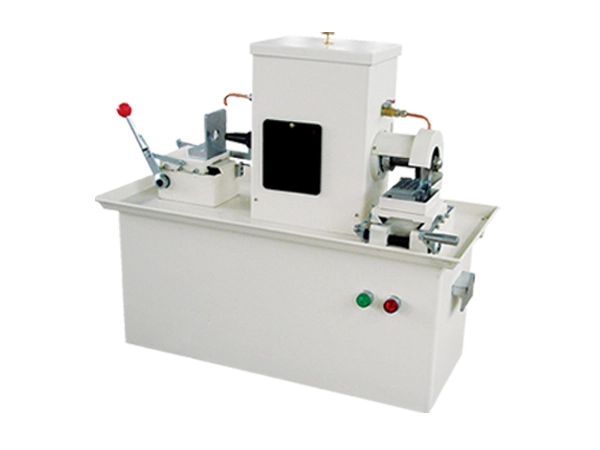

The XS-4103 dual head rapid slicing machine is used for cutting plastic specimens in rubber factories and rubber research institutes. It uses Φ16 ring cutter and 2 single blade circular cutters to cut standard specimens with a diameter of 16mm and a thickness of 10mm. The tool does not need to be replaced, and the operation is convenient. The appearance and internal structure have been redesigned to make the performance more reliable and the shape more beautiful.
Technical Parameters
Spindle speed: 1400r/min
Travel: Ring cutter drag plate: 65mm
Round knife drag plate: 50mm
Aperture of Ring Knife: Φ 16mm ± 0.5mm
Single blade round cutter: Φ 100mm x 20mm x 1mm
Power supply: AC380V± 10% 50Hz
External dimensions: 800mm x 355mm x 590mm
Net weight: 90kg
