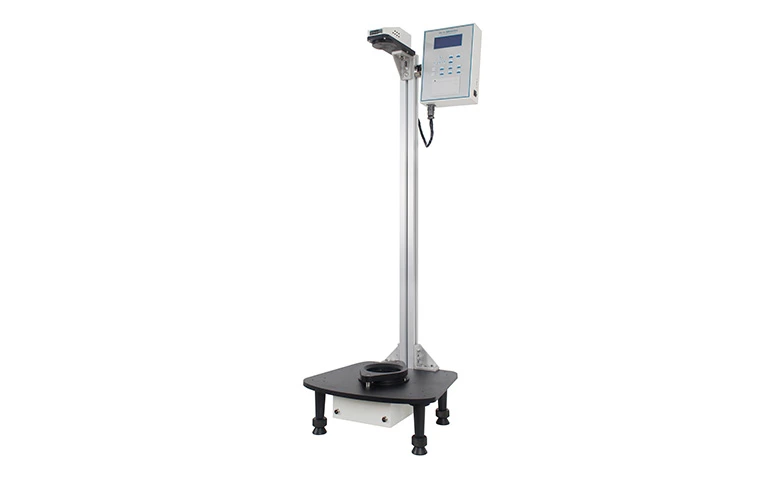

Drop Dart Impact Tester
Model: BZ-CJ-03
Standards:GB/T 9639, ASTM D1709, JIS K7124
Features
Meets GB & International standards
Nice appearance, easy operation
A,B dual mode design
Lighting observe light, fast & easy test
Automatic data processing
Intelligent test, higher work efficiency
Pneumatic clamping, release, higher accuracy and less test time
LCD display of test data
Test materials
Plastic film, sheet, composite film, aluminum foil, Aluminum-plastic composite film, paper, paper board
Configurations
Standard: method A configurations, micro printer
Optional: method B, software, communication cable
Specifications
|
Measurement methods |
A method/B method(optional) |
|
Measuring range
|
Method A：50 ~ 2000g 0.66土0.01m |
|
|
Method B：300～2000g 1.50土0.01m |
|
Test accuracy |
0.1g（0.1J） |
|
Specimen clamping |
Pneumatic |
|
Air pressure |
0.6 MPa（by customer） |
|
Connection size |
Ф8 mm Polyurethane tube |
|
Specimen size |
＞150mm × 150mm |
|
Power supply |
AC 220V 50Hz |
|
Net weight |
70 kg |
