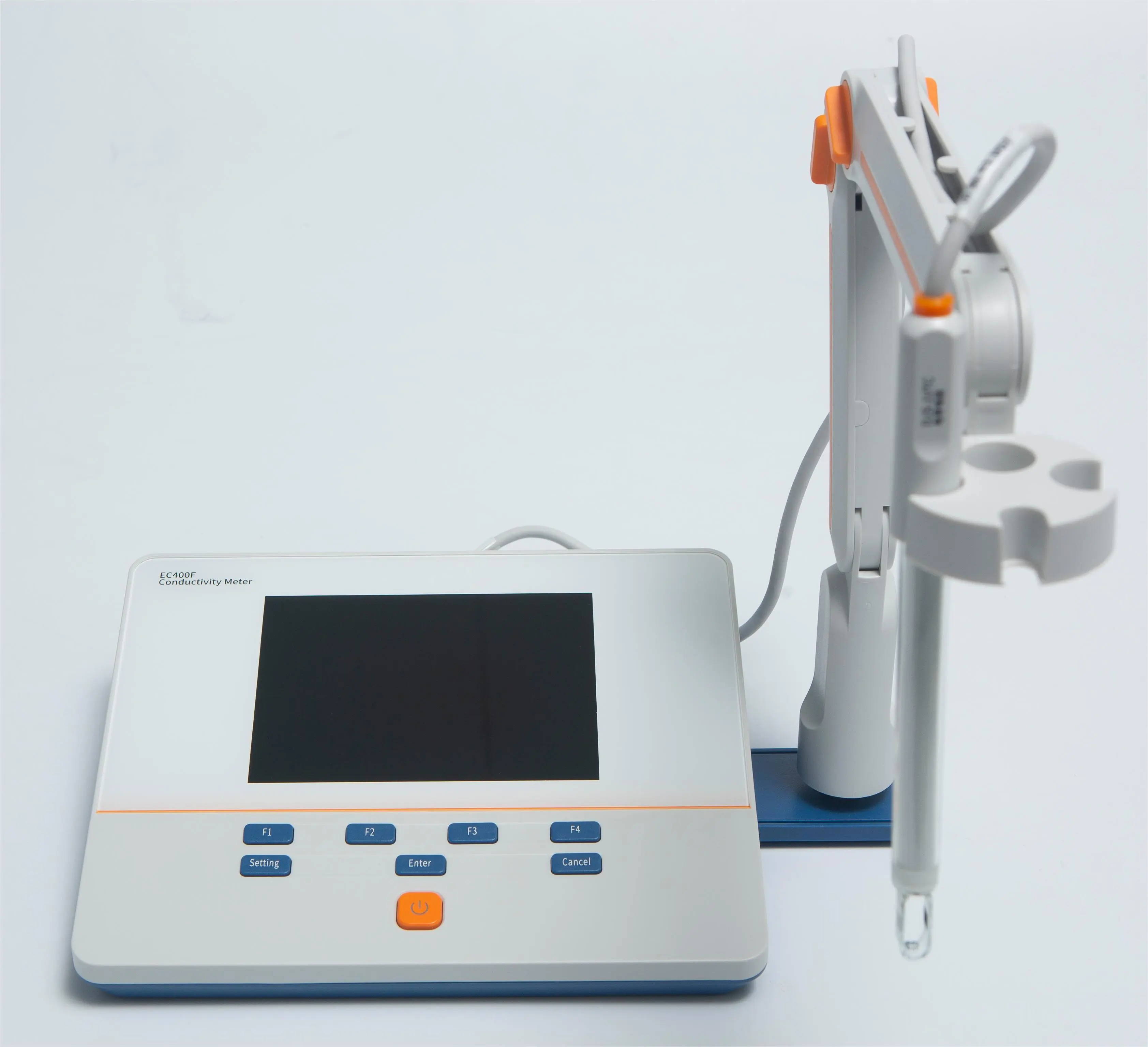

EC400F Conductivity Meter
Features
High resolution LCD display, 5.7 inches.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 500 sets (GLP-compliant).
Support for USB or RS-232 communication.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1-3 points calibration with Standard Recognition.
Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).
DJS-1VTC EC electrode
1413μS/cm EC standard solution, 50ml, 1 vial
REX-5 electrode stand
Parameters
|
Parameters |
EC/Temp.(Resistivity/TDS/Sal.) |
|
|
Conductivity |
Range |
0.000 μS/cm to 1000 mS/cm |
|
|
Resolution |
0.001 μS/cm minimum, various with range selection |
|
|
Accuracy |
±0.5% FS |
|
|
Reference Temperature |
20, 25 ºC |
|
|
Calibration Points |
Up to 3 |
|
|
Standard Recognition |
84μS/cm, 1413μS/cm, 12.88mS/cm |
|
Resistivity |
Range |
5.00 Ω·cm~100.0 MΩ·cm |
|
|
Resolution |
0.01 Ω·cm minimum |
|
|
Accuracy |
±0.5% FS |
|
TDS |
Range |
0.00ppm~1000ppt |
|
|
Resolution |
0.01 ppm minimum, various with range selection |
|
|
Accuracy |
±0.5% FS |
|
Salinity |
Range |
0.0～80.0 ppt |
|
|
Resolution |
0.1ppt |
|
|
Accuracy |
±1ppt |
|
Temperature |
Range |
-10 to 135 ºC, 14 to 275 ºF |
|
|
Unit |
ºC, ºF |
|
|
Resolution |
0.1 |
|
|
Accuracy |
±0.1ºC |
|
General |
Power |
AC Adapter, 100-240V AC input, DC9V output |
|
|
Dimensions |
242×195×68 mm |
|
|
Weight |
900g (1.98 lb) |
|
|
Dimensions (Carton) |
370×305×330 mm |
|
|
Weight (Gross) |
2.5 kg |
