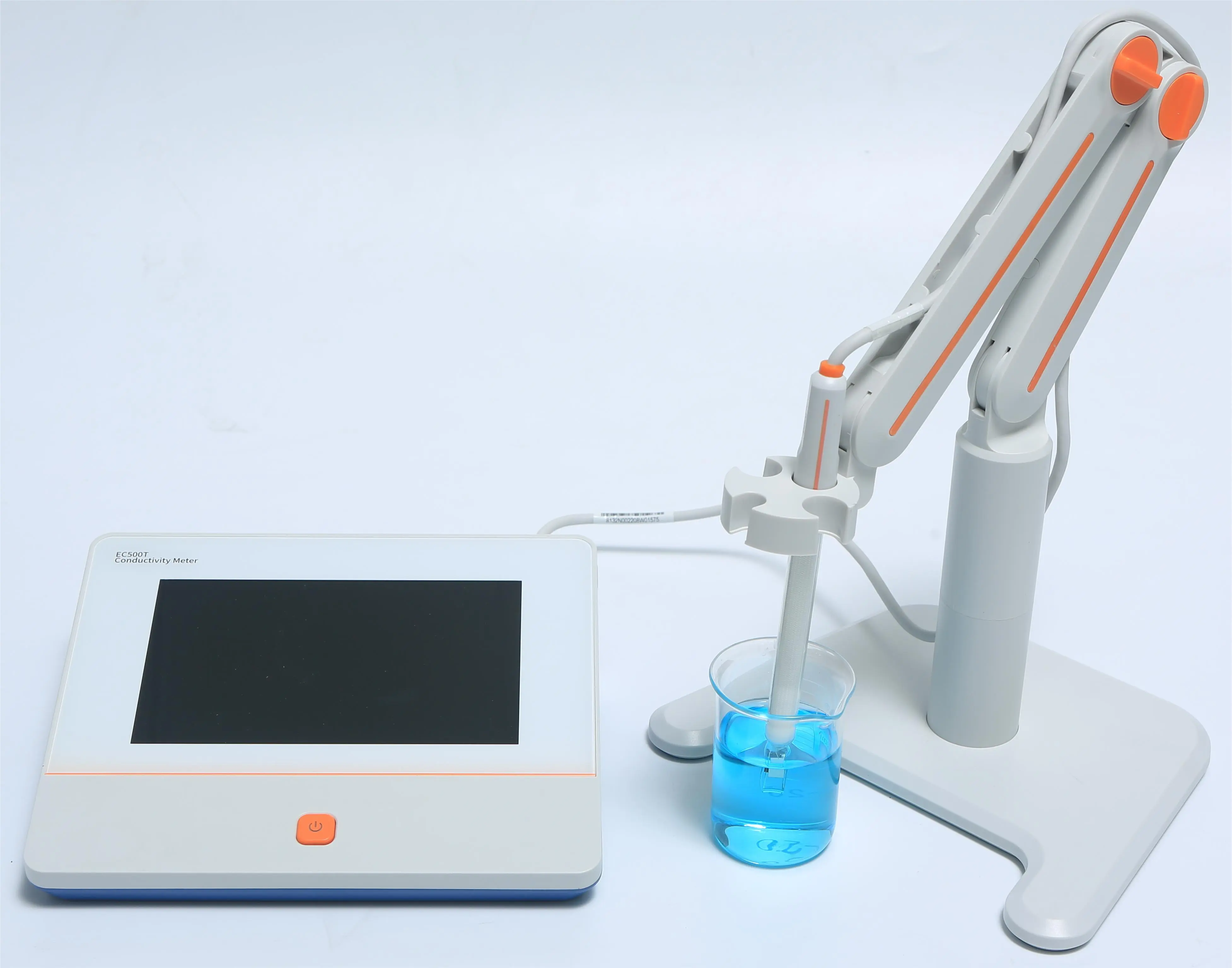

EC500T Conductivity Meter
Features
Color High contrast LCD touchscreen, 7.0 inches.
Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Data Storage 1000 sets for each parameter (GLP-compliant).
Data analysis feature helps user review, compare and recalculate results.
Support for USB or RS-232 communication.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1-5 points calibration with Standard Recognition.
Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).
DJS-1VTC EC electrode
1413μS/cm EC standard solution, 50ml, 1 vial
REX-6 electrode stand
Touch pen
Parameters
|
Parameters |
EC/Temp.(Resistivity/TDS/Sal.) |
|
|
Conductivity |
Range |
0.000 μS/cm to 2000 mS/cm |
|
|
Resolution |
0.001 μS/cm minimum, various with range selection |
|
|
Accuracy |
±0.5% FS |
|
|
Reference Temperature |
5, 10, 15, 18, 20, 25 ºC |
|
|
Calibration Points |
Up to 5 |
|
|
Calibration Reminder |
Yes |
|
|
Standard Recognition |
10 μS/cm, 84 μS/cm, 500 μS/cm, 1413 μS/cm, 12.88 mS/cm;146.5μS/cm, 1408μS/cm, 12.85mS/cm, 111.3mS/cm |
|
Resistivity |
Range |
5.00 Ω·cm~100.0 MΩ·cm |
|
|
Resolution |
0.01 Ω·cm minimum |
|
|
Accuracy |
±0.5% FS |
|
TDS |
Range |
0.000 ppm ~1000 ppt |
|
|
Resolution |
0.001 ppm minimum, changed with range |
|
|
Accuracy |
±0.5% FS |
|
Salinity |
Type |
NaCl |
|
|
Range |
0.0～80.0 ppt |
|
|
Resolution |
0.1ppt |
|
|
Accuracy |
±1ppt |
|
Temperature |
Range |
-10 to 135 ºC, 14 to 275 ºF |
|
|
Unit |
ºC, ºF |
|
|
Resolution |
0.1 |
|
General |
Power |
AC Adapter, 100-240V AC input, DC24V output |
|
|
Dimensions |
220×195×68 mm |
|
|
Weight |
950g (2.09 lb) |
|
|
Dimensions (Carton) |
370×305×330 mm |
|
|
Weight (Gross) |
5.5 kg |
