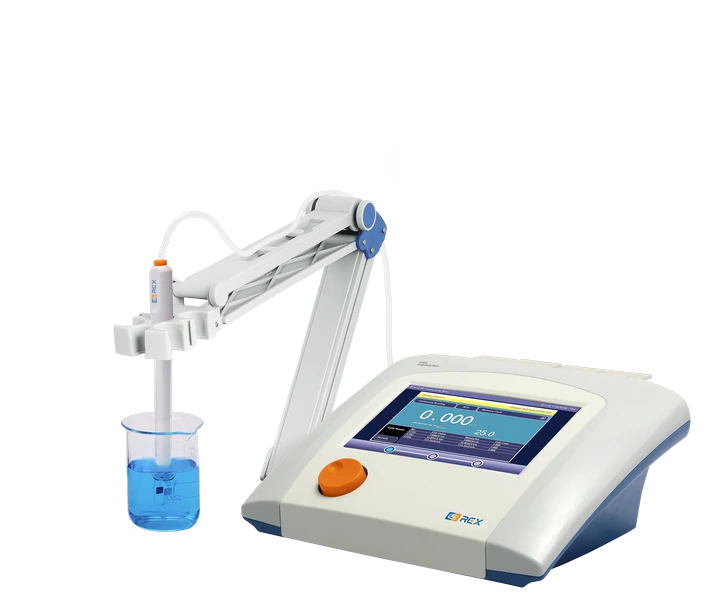

EC600L Conductivity Meter
Features
² Color High contrast LCD touchscreen, 7.0 inches.
² ²Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
² ²Multi-reading feature allows auto-read, timed-read and continuous-read.
² ²Automatic/Manual temperature compensation ensures accurate results.
² ²Data Storage 1000 sets for each parameter (GLP-compliant).
² ²Data analysis feature helps user review, compare and recalculate results.
² ²Support for USB or RS-232 communication.
² ²Reset feature automatically resumes all settings back to factory default options.
² ²IP54 waterproof.
² ²1-5 points calibration with Standard Recognition.
² ²Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
² ²Temperature compensation type (none, linear, pure water).
² ²DJS-1-L EC electrode
² ²T-818-L Temperature probe
² ²1413μS/cm EC standard solution, 50ml, 1 vial
² ²REX-3 electrode stand
² ²Touch pen
Parameters
|
Parameters |
EC/Temp.(Resistivity/TDS/Sal.) |
|
|
Conductivity |
Range |
0.000 μS/cm to 3000 mS/cm |
|
|
Resolution |
0.001 μS/cm minimum, various with range selection |
|
Resistivity |
Range |
5.00 Ω·cm~100.0 MΩ·cm |
|
|
Resolution |
0.01 Ω·cm minimum |
|
TDS |
Range |
0.000 mg/L~1000 g/L |
|
|
Resolution |
0.001ppm minimum, changed with range |
|
Temperature |
Range |
-5 to 130 ºC |
|
|
Unit |
ºC |
|
|
Resolution |
0.1ºC |
|
|
Accuracy |
±0.1ºC |
|
Measurement |
Reading Mode |
Auto Read (Fast, Medium, Slow), Timed, Continuous |
|
|
Reading Prompts |
Reading, Stable, Locked |
|
|
Temp. Compensation |
ATC, MTC |
|
General |
Power |
AC Adapter, 100-240V AC input, DC24V output |
|
|
Dimensions |
280×280×130 mm |
|
|
Weight |
2500g (5.51 lb) |
|
|
Dimensions (Carton) |
370×305×330 mm |
|
|
Weight (Gross) |
4 kg |
