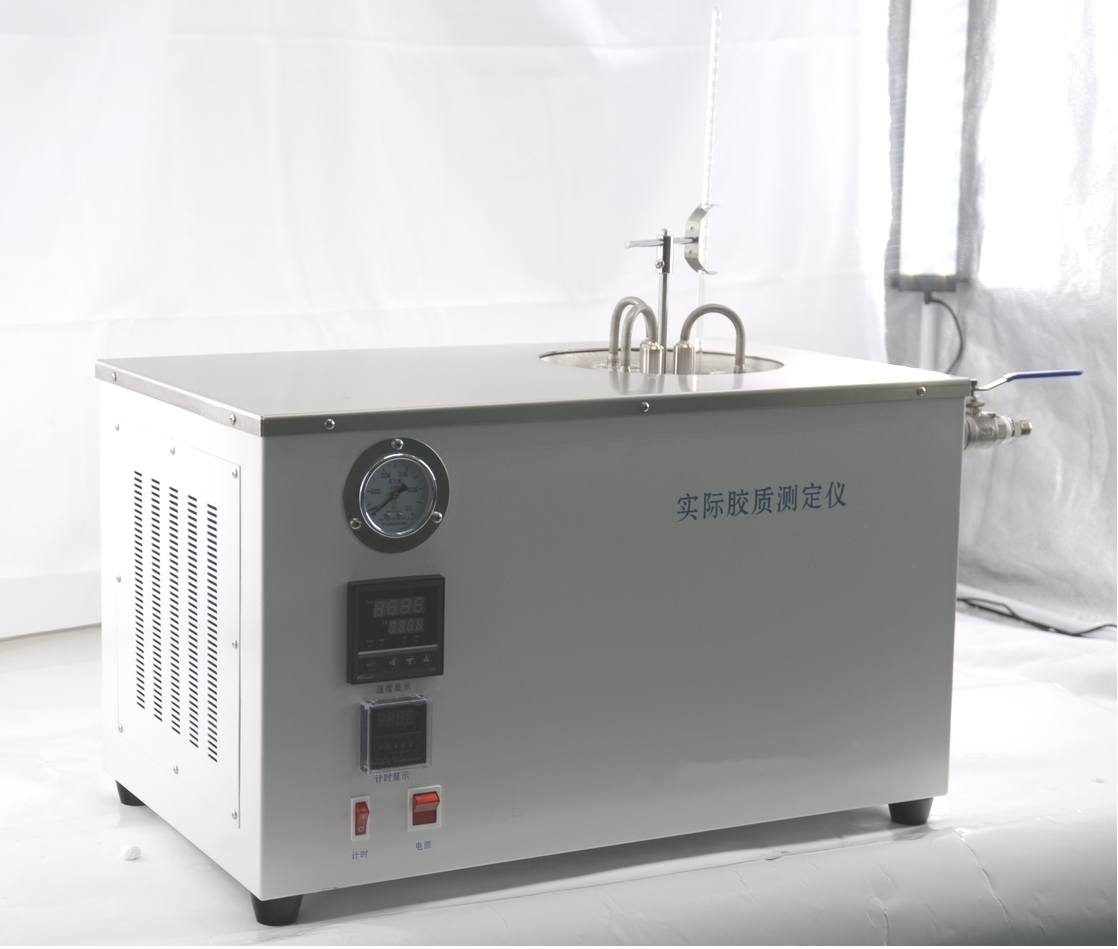

Existent Gum Test Apparatus
Model: SY-2080
Features
1. Using German temperature sensors
2. Fast heating speed, high precision of constant temperature, metal bath constant temperature
3. No noise, no pollution, uniform and stable airflow distribution
Specifications
The temperature measurement component adopts the original temperature measurement sensor from JUMO company in Germany
Bath constant temperature range 0-300 ℃
Constant temperature point and accuracy: 150 ± 1.0 ℃, 180 ± 1.0 ℃, 250 ± 1.0 ℃; Can be set by oneself
Power consumption: less than 2500W
Oil bath: Φ two hundred × 220mm rated current 10A
Temperature control accuracy: ± 1 ℃
Temperature sensor: PT100
Number of test holes: 3
Flowmeter flow range: 40-70L/min
Relative humidity: ≤ 85%
Thermometer: 0-360 ℃, with a division value of 1.0 ℃
Environmental temperature: 5 ℃~40 ℃
Working power supply: AC220V ± 10%, 50Hz
External dimensions: 560mm × 400mm × 320mm
Instrument weight: 30.9kg
