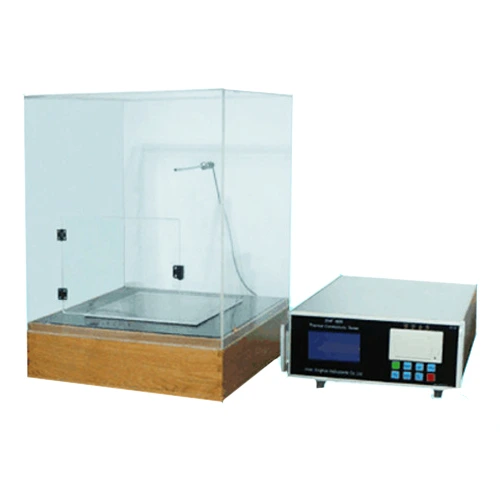

Flat-Plate Thermal Conductivity Tester
This instrument is used to determine the insulation performance of ordinary fabrics, knitted fabrics, fluffed fabrics, quilted product cushions and various insulation materials.MCU control, large LCD display, automatic data management, can print output, easy program setup, fast test.
Model: FZ-606D
Standards: GB/T11048, ASTMD1518,JIS-1096
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Specifications
1. Temperature adjustment range of hot plate: 20~50 ℃
2. Warm-up time setting range: 0~99 minutes
3. Cycle heating cycle setting range: 1 ~ 9 times
4. Test times: 1 to 9 times
5. Minimum resolution of temperature display: 0.1 ℃
6. Technical parameters of heating plate: 40W test plate, 80W protection plate, 120W bottom plate
7.Test board size: 250 × 250 mm
8.Test bench size: 510 × 51 × 640 mm
9.Outline dimension of electric control box: 300 × 345 × 150 mm
10. Power supply: AC 220V ± 5%, 50Hz
11. Net weight: 30kg
