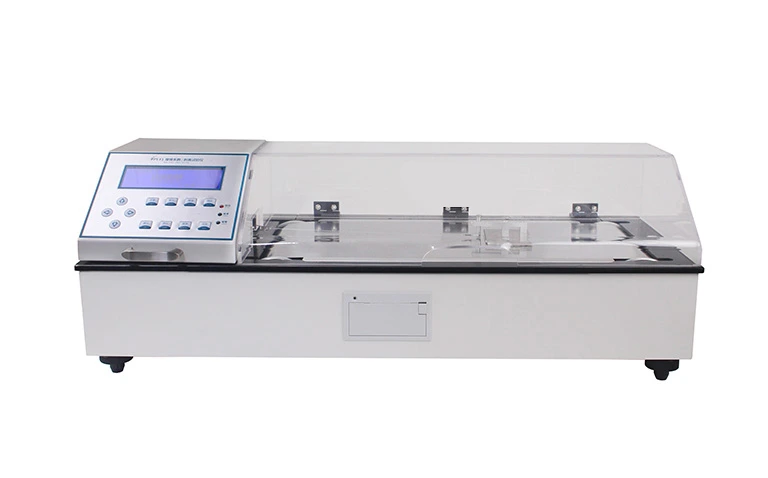

Friction Coefficient & Peeling Tester
Standards:GB/T 10006,GB/T 2790,GB/T 2791,GB/T 2792,ISO 8295,ISO 8510-2,ASTM D1894,ASTM D4917,ASTM D3330,TAPPI T816,TAPPI T549
Features
Equipped with two test modes of friction coefficient and 180° peeling
Wide-range, high-precision temperature control device easily realizes tests under different temperatures
7 test speeds and 3 test ranges available
The test bench and the test slide have been demagnetized and tested for remanence, which effectively reduces the system test error
Controlled by a computer and a microprocessor, easier operation
Professional software provides statistical analysis of test results curve overlay, and accurately and intuitively displays test results to users
Equipped with USB interface, professional measurement and control software, which can control the instrument to complete various tests
Configurations
Standard configuration: host, peeling chuck, 200g slider, 500g slider
Options: professional software, computer, communication cable, test board, sampling knife, non-standard slider, non-standard chuck
Specifications
|
Load range |
0 ~ 5 N,0 ~ 10 N,0 ~ 30 N |
|
Accuracy |
0.5% |
|
Slider quality |
200 g (100g ,500g,1000g, 1814g,2000g） |
|
Test speed |
1 ~ 600 mm/min（stepless speed regulation） |
|
Test temperature |
Room temperature ~ 99.9℃ |
|
Power supply |
AC 220 V 50 Hz |
|
Outer dimensions |
850mm(L) × 350mm(W) × 290mm(H) |
|
Net weight |
30 kg |
