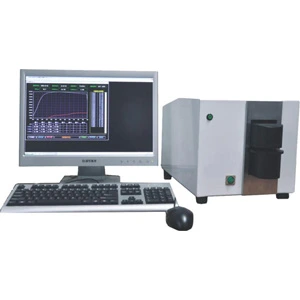

FZ-183 UV Penetration Protection Test System 01 02 03
Standards: GB/T 18830, AATCC 183, AS/NZS 4399, BS 7914, PREN13758
Features
HERARUS lamp, built in Integrating sphere spectrophotometer, wavelength automatic scan, wide measuring range, high test accuracy
Ultravilolet optical sensor, can test Fluorescent sample
Fully computer control, automatic data processing, multi diagraph, report statistics, analysis, storage, output.
Technical specifications
|
Measuring range: through rate |
0-100%±0.01%, UPF:0-100 |
|
Wavelength range |
280-400nm±0.5nm |
|
Wavelength repeatability |
0.25nm |
|
Data interval |
1nm-5nm adjustable |
|
Slit width |
<=5nm |
|
Optical system |
0/d |
|
Sample optical beam dia. |
10mm |
|
Power supply |
AC 220V, 50hz, 100w |
|
Overall dimension |
310×500×300mm |
|
Net weight |
20kg |
