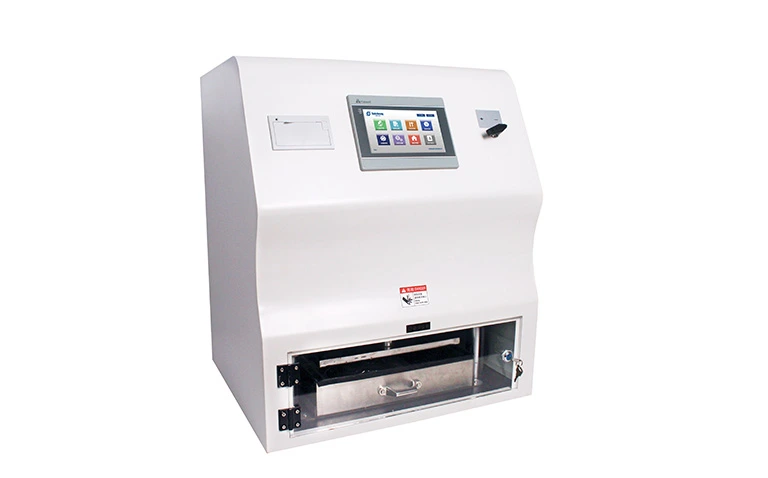

Infusion Bags Internal Pressure Tester
Model: BZ-NY02
Features
• Touch screen display, box structure nice appearance and generous
• Imported brand sensors, the test results are accurate and reliable
• It can carry out dual test functions of holding pressure test and blasting test
• Statistical analysis of experimental results to meet the different needs of customers
• Intelligent configuration such as limit protection, overload protection, automatic return and power-down memory to ensure the safety of users' operations
• The instrument can automatically determine the experimental results
• Equipped with a micro printer to quickly print test results
Configurations
Host, pressure clamp, micro printer, protective barrel
Optional parts: professional software, communication cable, sensor, sampling knife, 90° stripping fixture, low-speed unwinding device, non-standard fixture.
Specifications
|
Measuring range |
6000 N |
|
Resolution |
0.01 N |
|
Test size |
<400 mm x 300 mm(others customized made) |
|
Specimen height |
10 mm ~ 100 mm(others customized made) |
|
power supply |
AC 220 V 50 Hz |
|
Environmental requirements
|
23 ±2℃, max 80%RH,no condensation |
|
Dimensions |
500mm(L) × 400mm(B) × 570mm(H) |
|
Net weight |
152 kg |
