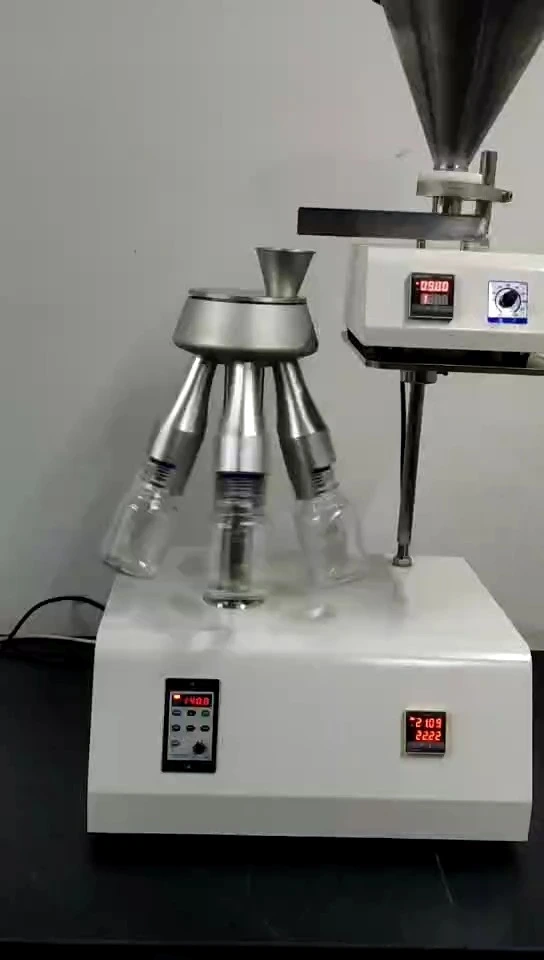

Rotary sample divider 6 /8/10 stations

The rotary sample divider is composed of two main parts: an automatic sampler and a sampler. The automatic sampler uniformly sends the sample to an eccentric sampling funnel at a constant speed. The sampling funnel introduces the sample into the rotating porous funnel, and the centrifugal force generated by the rotation of the porous funnel and the gravity of the sample distribute the sample into the sample bottle. The entire sampling process is automatically carried out without any interference, The porous funnel of the sampling crown rotates at a constant speed of 110/minute per revolution at the fastest. The rotation speed is monitored by the controller and is not affected by load and voltage changes. The instrument always samples at a constant speed during operation. Due to the different purposes of collecting samples, we will provide a variety of suitable crowns and sampling bottles with various volumes for you to choose from.

Features

The sampling funnel of the instrument adopts anodizing treatment, forming a hard protective film on the surface to resist wear.

The sample splitter and automatic sample feeder use dual constant speed operation to synchronize sample delivery and sampling. Improved sampling accuracy.

Easy to operate, simple and fast. The sample bottle is quickly fastened and disassembled, making it easy to clean.

No noise during operation, compact design.

The speed of the sample splitter and sample delivery is monitored by the control module to maintain constant operation at the same speed

• The system reserves USB interface, which can print and output test data to meet different customer needs

Specifications

Power supply 220V50HZ 50W

Speed 90-110 rpm

Maximum injection size 10mm

Time setting range 1-99.99 minutes

Divided into 6, 8, and 10 samples

Maximum sample size 5000 milliliters

Receive sample bottles with volumes of 100, 250, and 500ml

Instrument size 50 * 40 * 89 cm

Net weight 30kg
