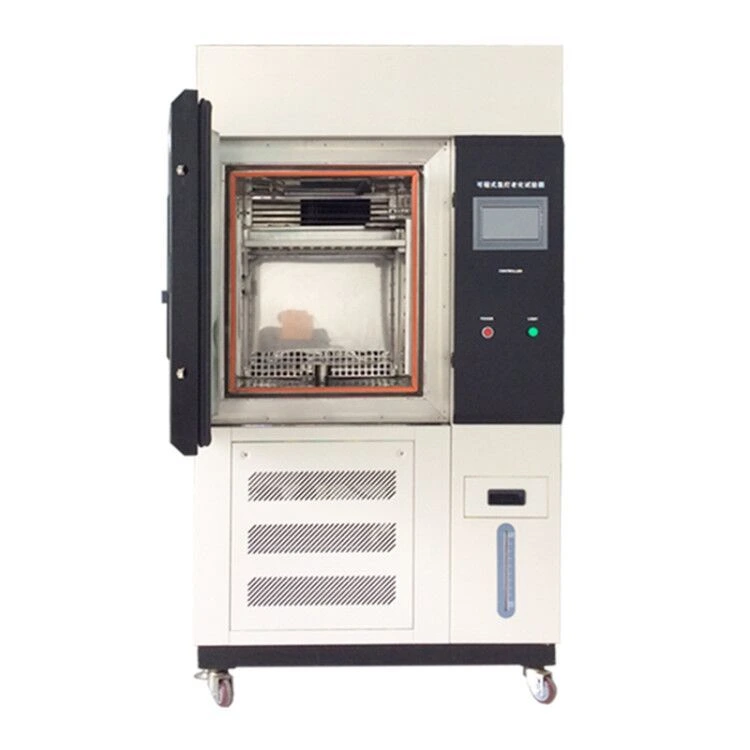

Light Colour Fastness Test Chamber
Standards:ISO 105-B04, AATCC TM 16
Specifications
|
Model |
FZ-611C |
FZ-611D |
FZ-611E |
|
Function |
Lighting, raining, Alternating light and dark, Revolution, rotation, constant temperature and humidity, fully complies to AATCC standards |
||
|
Test chamber Temp. range |
25~70℃，resolution 0.1℃ |
||
|
Test chamber humidity range |
Light circulation: 10~70%RH, resolution 0.1%RH |
||
|
Dark circulation: 30~95%, resolution 0.1%RH |
|||
|
Standard blackboard Temp. |
40~85℃，±1℃ |
40~100℃，±1℃ |
|
|
Optional blackboard Temp. |
40~80℃，±2℃ |
40~95℃，±2℃ |
|
|
Test time control range |
≤10000h |
||
|
Radiation level control range |
0.8~2.01w/m2@420nm;(340nm, 420nm, 300~400nm 和300~800nm), accuracy ±0.02w/m2@420nm, digital setup, closed circuit offset |
||
|
Xenon arc lamp power |
2.5kw |
3.0kw |
3.5kw |
|
Sample holder rotation rate |
Revolution 5rpm, rotation 180°/r(customized) |
||
|
Accommodating sample holder size and number |
GB: 135*45/12pcs |
GB: 135*45/16pcs |
|
|
AATCC: 135*75/6pcs |
AATCC: 135*75/8pcs |
||
|
Dual-side sample clamping optional |
|||
|
Each sample holder separated timing |
≤10000h |
||
|
Light period |
≤1000h |
||
|
Spray period |
≤1000h |
||
|
Working power |
AC 220V±10% 50hz rated power 2.5kw |
AC 220V±10% 50hz rated power 2.7kw |
AC 220V±10% 50hz rated power 3kw |
|
Overall dimension |
1000×550×1570mm |
1000×600×1650mm |
1000×650×1700mm |
|
Net weight |
180kg |
190kg |
200kg |
