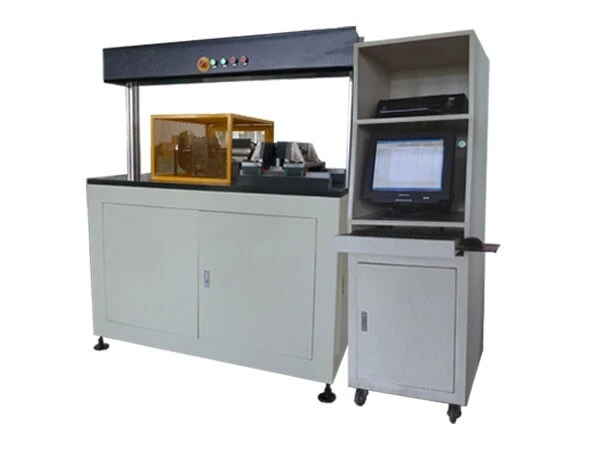

Lining torsion fatigue testing machine for rubber
Product Introduction
The lining torsion fatigue testing machine is used to simulate the durability fatigue test of automotive elastic lining under torsion and radial pressure, and is a new type of elastic lining torsion fatigue testing machine. Computer software control, capable of conducting fatigue tests and static stiffness tests. Suitable for testing the fatigue durability performance of various automotive bushings in the rubber, automotive industry, and research institutions. Beautiful appearance, easy operation, and high reliability.
Technical parameters
1. Maximum positive pressure: 5000N
2. Maximum torque: 50N. m
3. Maximum torsion angle: ± 15 °
4. Twisting speed: 0-90 times/minute
5. Motor power: 0.4kW (may vary depending on material strength)
6. Set test frequency: 0-999.9999 times
7. Power supply voltage: AC220V ± 10% 50Hz 1kW
8. External dimensions: 1675mm x 820mm x 1660mm
Note: The computer cabinet is not included in the configuration
