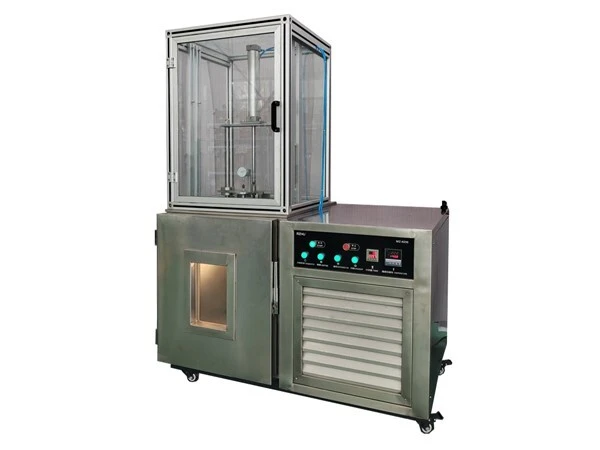

Low temperature compression permanent deformation test bench ISO 815
Product Introduction
This instrument is mainly used to determine the compression permanent deformation of vulcanized rubber under low temperature conditions.This testing machine is mainly consists of a low-temperature box, a pneumatic lifting system, a testing device, etc. Refrigerated by a low-temperature box with high temperature control accuracy.
Standards
GB/T 7759.2-2014/ISO 815-2:2008 "Determination of compression set of vulcanized or thermoplastic rubbers - Part 2: Under low temperature conditions".
Technical parameters
1. Temperature range: -70 ℃ to room temperature
2. Temperature uniformity: not greater than 2 ℃ (when unloaded)
3. Lift cylinder stroke: 300mm
4. Studio size: 450mm x 400mm x 550mm (L x W x H)
5. Working pressure: 0.4MPa
6. Power supply: AC220V ± 10% 50Hz 5kW
7. External dimensions: 1330mm x 940mm x 1820mm
