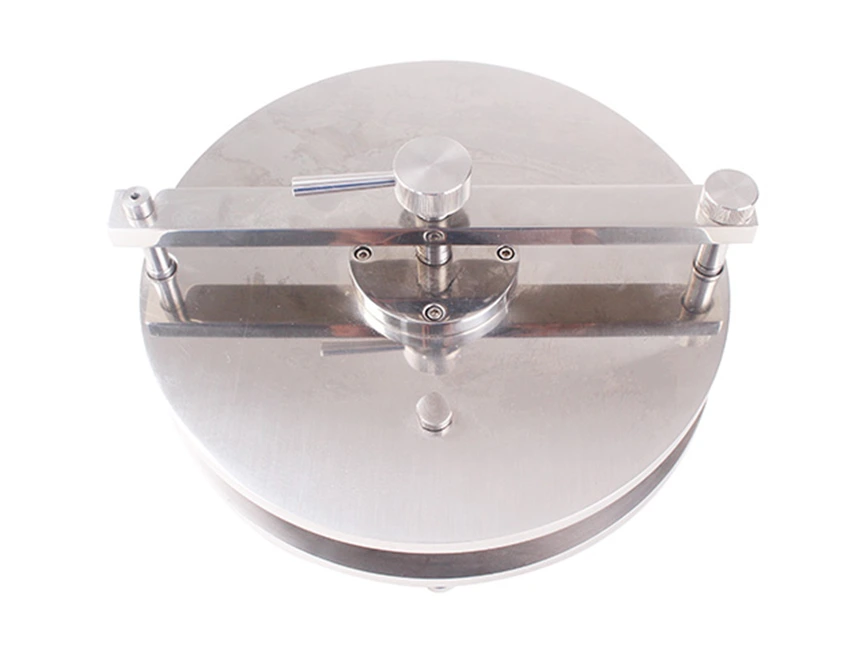

Migration Test Pool

The migration pool is suitable for pretreatment of migration test of food contact materials and products in contact with water, vegetable oil and other nonvolatile food simulants. High quality stainless steel is used, and the material itself has no trace matter precipitation The thickened screw rod center compression type sealing structure is adopted to ensure that the single side seal is impermeable Super large one-sided contact area and volume improve the pretreatment efficiency The sealing structure of the migration test cell ensures that the part beyond the test area of the sample does not contact the food simulant, and ensures the effectiveness of the test area. Suitable for elastic food contact materials and products

Standards: GB/T 5009.156-2016,GB/T 31604.1-2015,GB/T 23296.1 -2009

Inquiry

Write a Review

Specifications

Model	BZ-QYC01	BZ-QYC02	BZ-QYC03
Contact form	single or double sided	single or double sided	Single side
contact area	100 cm²	51.5 cm2	196 cm2
Diameter	Φ112.8 mm	Φ81 mm	Φ158 mm
Volume	200 mL	120 mL	390 mL
Operating temperature	5℃ ~ 180℃	5℃ ~ 180℃	5℃ ~ 180℃
Overall dimensions	175 mm(L) × 140 mm(B) × 63 mm(H)	143 mm(L) ×125 mm(B) × 76 mm(H)	235 mm(L) × 225 mm(B) × 135 mm(H)
Net weight	8.2 kg	2 kg	8.2 kg
