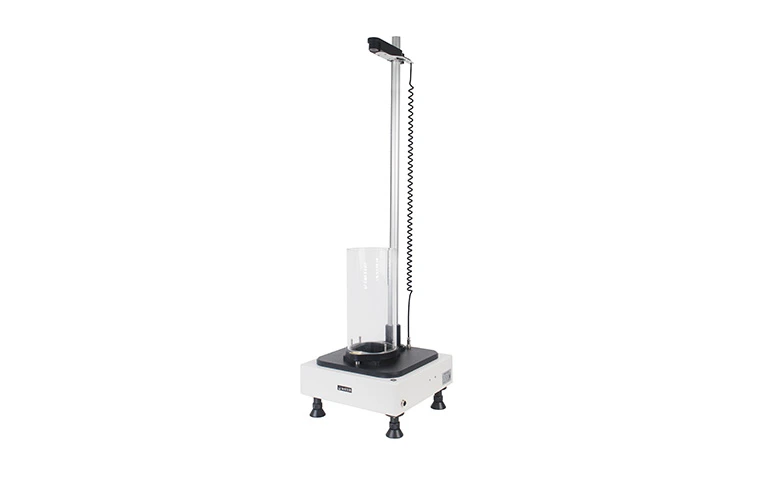

Plastic Film Drop Ball Impact Tester
Model: BZ-CJ02
Test standards:YBB00212005-2015,YBB00222005-2015,YBB00232005-2015,YBB00242002-2015
Features
• A variety of impact steel balls are optional to meet different test tandards
• The height of different falling balls can be adjusted to meet different test requirements
• The specimen is clamped and released pneumatically for faster and more accurate test operations
• The steel ball is electromagnetically attracted and released automatically, effectively avoiding system errors caused by human factors
• Foot switch start mode, humanized operation
• Protective device to make the test process safer
• Center positioning device, reliable test results
Configurations
Host, steel ball, foot switch, positioning device
Specifications
|
Test height
|
300 mm ~ 600 mm |
|
200 mm ~ 2000 mm(optional) |
|
|
Thickness range |
0 ~ 2 mm |
|
Steel ball diameter |
28.6 mm（23mm,25mm,38.1mm,50.8mm others customized made） |
|
Specimen holding mode |
Pneumatic |
|
Specimen size |
>150 mm × 50 mm |
|
Dimensions |
480 mm(L) × 470mm(W) × 1170mm(H) |
|
Net weight |
60 kg |
