Rubber impact elasticity testing machine ISO 4662
Product Introduction

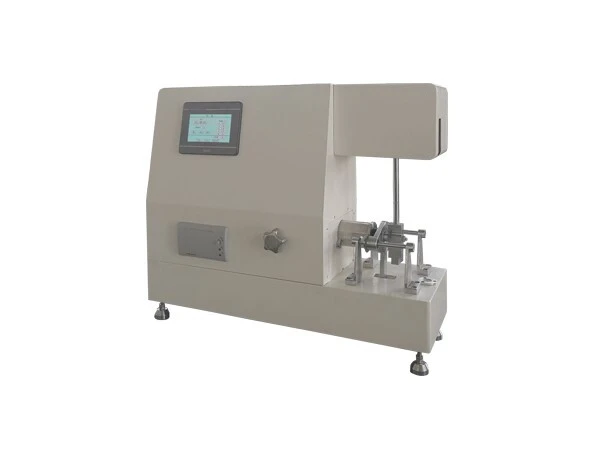

The XS-4065C rubber impact elasticity testing machine is a pendulum type impact tester with an energy of 0.5J, suitable for measuring the rebound value of vulcanized rubber between hardness 30IRHD and 85IRHD. Meet the requirements of GB/T 1681 "Determination of Resilience of Vulcanized Rubber" and ISO 4662 standards.This machine adopts touch screen control, with high control accuracy, and the measured data can be printed through a micro printer.
Technical parameters
1. Punch diameter: 15mm
2. Sample size: 29mm x 12.5mm
3. Impact mass: 0.35-0.1kg
4. Impact speed: 1.4+0.6m/s
5. Impact angle: 90 º
6. External dimensions: 550mm x 180mm x 470mm
7. Power supply: AC220V 50Hz 50W
