Stainless Steel Migration pool 120ml 200ml 390ml 1

Stainless Steel Migration pool 120ml 200ml 390ml 2

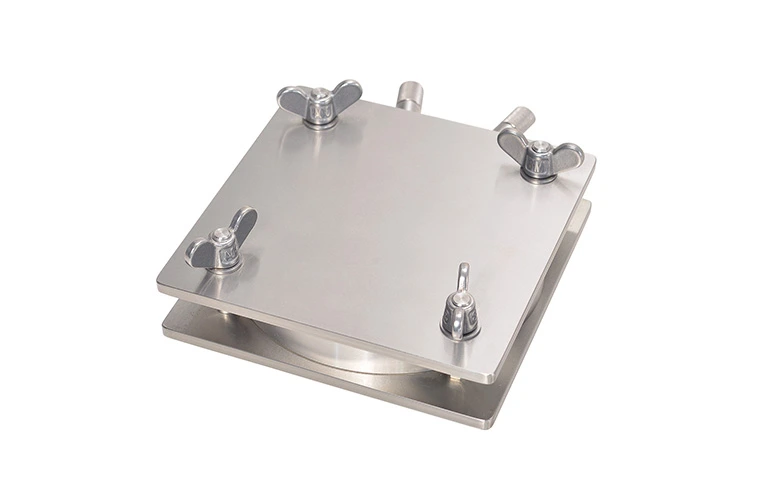

Stainless Steel Migration pool 120ml 200ml 390ml

The BZ-QY migration cell are suitable for pre-treatment of migration tests on food contact materials and products. Complies with the latest national standard GB/T 5009.156-2016 and is applicable to all non volatile food simulants in GB/T 31604.1-2015 "General rules for migration testing of food contact materials and products".

Testing standards

GB/T 5009.156-2016 GB/T 31604.1-2015, GB/T 23296.1 -2009

Inquiry

Write a Review

Features

High-quality stainless steel made, the material itself has no trace substance precipitation

Adopting a thickened screw center compression sealing structure to ensure single side sealing without penetration

The large single-sided contact area and volume improve the pre-treatment efficiency

The sealing structure of the migration test pool ensures that the portion outside the sample testing area does not come into contact with food simulants, ensuring the effectiveness of the testing area

Suitable for elastic food contact materials and products

Specifications

Model	BZ-QY-01A	BZ-QY-01B		BZ-QY-01C
Contact form	Single side	Single or double side
contact area	196 cm²	51.5 cm²	100 cm²
Diameter	Φ158 mm	Φ81 mm	Φ112.8 mm
Volume	390 mL	120 mL	200 mL
Operating temperature	5℃ ~ 180℃	5℃ ~ 180℃	5℃ ~ 180℃
External dimensions	235 mm(L) × 225 mm(B) × 135 mm(H)	143 mm(L) ×125 mm(B) × 76 mm(H)	175 mm(L) × 140 mm(B) × 63 mm(H)
Net weight	8.2 kg	2 kg	8.2 kg
