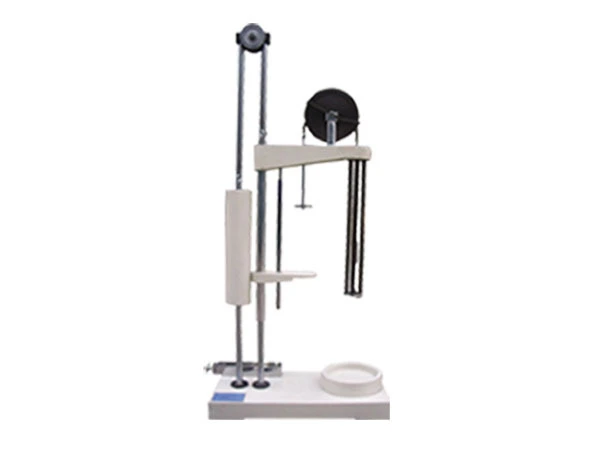

Tensile cold resistance coefficient tester
The XS-4069 tensile cold resistance coefficient tester is mainly used to measure the cold resistance performance of samples under normal temperature and low temperature tensile conditions. It measures the cold resistance coefficient of rubber or film samples under the same load at room temperature and low temperature, and calculates the change in elongation of the sample. Alternatively, at room temperature and low temperature, it measures the load required for the same elongation of the specimen under tension and calculates the coefficient of hardness increase. It can be used for experimentation and signing by research institutes, factories, schools, and research institutions.
Technical Parameters
Maximum extension length of the sample: 230mm
Maximum tensile load of the sample: 40N
Sample clamping distance: Rubber: 25mm
Film: 100mm
External dimensions: 500mm x 250mm x 1140mm
Weight: 52kg
