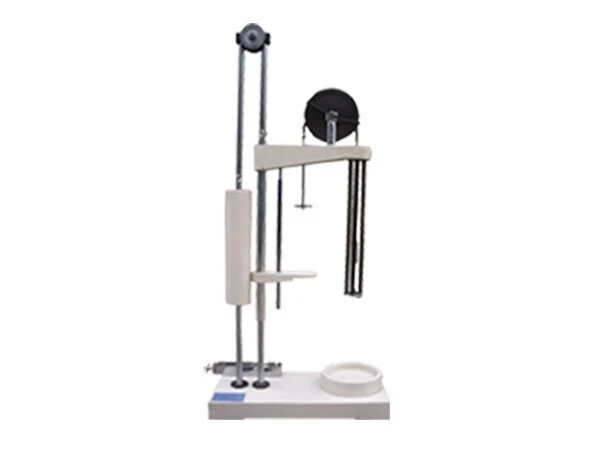

Tensile cold tolerance coefficient tester for rubber
Product Introduction:
The tensile cold resistance coefficient tester is mainly used for the determination of the cold resistance of samples in the tensile state at room temperature and low temperature. The cold resistance coefficient is calculated according to the change of the elongation of the sample after the same load of the rubber or film sample at room temperature and low temperature. Or at room temperature and low temperature, the load required for the same elongation of the specimen is determined, and the hardness increase coefficient is calculated. It can be used by research institutes, factories, schools and scientific research units for testing and signing.
Technical parameters:
1. Maximum elongation of the specimen: 230mm
2. Maximum tensile load of specimen: 40N
3. Specimen clamping distance:
3.1. Rubber: 25mm
3.2. Film: 100mm
4. Dimensions: 500mm×250mm×1140mm
5. Weight: 52kg
