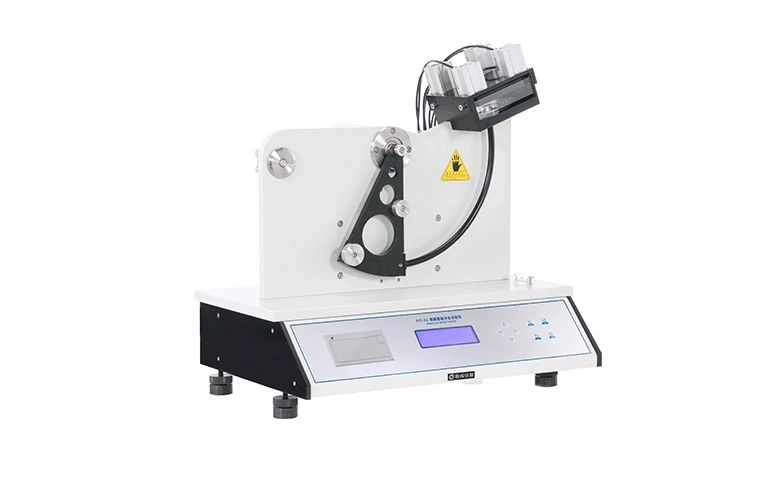

Thin Film Pendulum Impact Tester
Model: BZ-CJ-01
Standards:GB/T 8809-88, ASTM D3420, NF T54-116
Features
• Adjustable measure range, and the electronic measurement can easily and accurately realize the test under various test conditions
• Pneumatic clamping, pneumatic release of pendulum and level adjustment auxiliary system effectively avoid system errors caused by human factors
• The system automatically counts the test data, and intuitively displays the test results to the user
• Microcomputer control, LCD display, menu interface and PVC operation panel, convenient for users to quickly perform test operations and data viewing
• Mini printer and standard RS232 interface to facilitate the external connection and data transmission between equipment and the computer
• Laboratory data sharing system, unified management of test results and test reports
Work principle
It tests the sheet film impact strength by measure the power needed for the hemispherical punch to impact & penetrate the sheet film with a specific speed.
Configurations
Main unit, 1J basic pendulum body, capacity 2J weight 1pc, capacity 3J weight 1pc,Ф25.4mm standard punch 1pc, Ф19mm standard punch 1pc,Ф89mm standard test splints (including O-rings) 1pair, Ф60mm standard test splint One pair (including O-ring) 1pair, mini printer
Optional parts: professional software, communication cable, non-standard punch, O-ring
Specifications
|
Impact energy |
3J, 5J(optional) |
|
Resolution |
0.001 J |
|
Punch size |
Ф25.4 mm,Ф19 mm (customized） |
|
Specimen size |
100 mm x 100 mm or Ф100mm |
|
Air pressure |
0.6 MPa（by customer） |
|
Air connection |
Ф6 mm Polyurethane (PU)tube |
|
Dimensions |
600 mm (L) × 390 mm (W) × 600 mm (H) |
|
Power supply |
AC 220V 50Hz |
|
Net weight |
64 kg |
