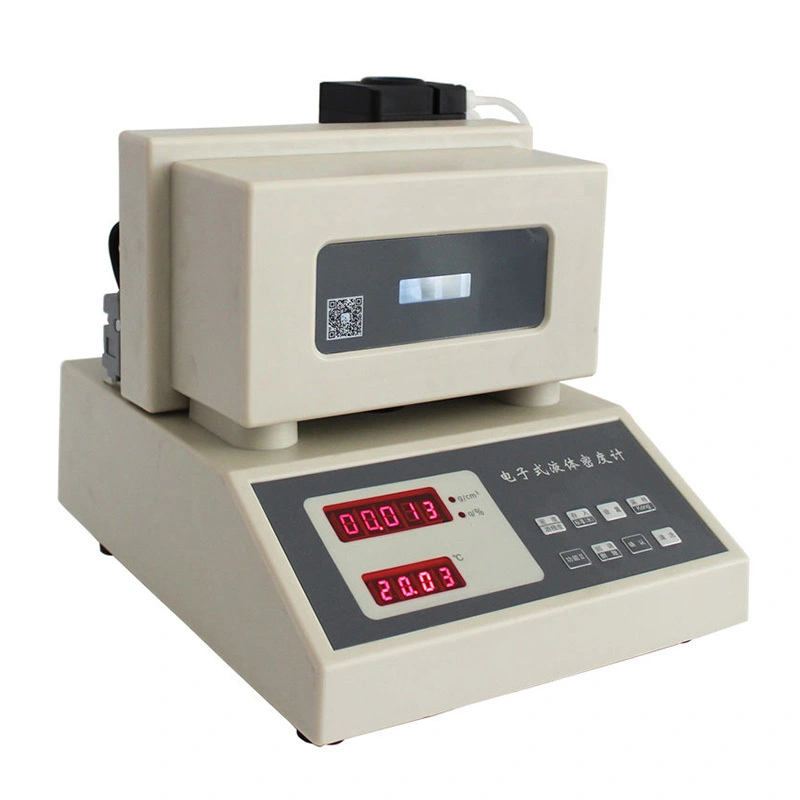

U- Shaped Vibrating Tube Densitometer
The fully automatic densitometer adopts the principle of U-tube oscillation method, effectively combining Paltier precise temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable, and reliable test results, but also brings users an efficient and convenient testing experience. High definition videos can easily see whether there are bubbles in the sample. Pulse excitation and high-precision detection technology are used to facilitate users to accurately and quickly measure sample density and density related parameters.
Testing principle: Inject a small amount of sample into a temperature controlled sample tube, record the vibration frequency or period, and calculate the density of the sample using the previously obtained sample tube constant. The constant of the sample tube is determined by the vibration frequency when the sample tube is filled with a known density calibration solution. The instrument will directly display the density value after the sample is injected into the sample tube.
Product Specifications
| Model | FX-YM-4005 |
| Standards | ASTM D4052 |
| Density Resolution | 0.0001g/cm3 |
| Repeatability ± | 0.0005g/cm3 |
| Accuracy ± | 0.001g/cm3 |
| Test Range | 0.0001-1.9999g/cm3 |
| Temperature Resolution | 0.01℃ |
| Repeatability | ±0.1℃ |
| Temperature Control Method |
Parcel temperature control |
| Temperature Control Range |
20℃ |
| Test Method |
U-shaped vibrating tube method |
| Injection Capacity | Manually inject about 2mL, automatically pump injection about 3mL |
| Injection Method: | Manual injection with a syringe or automatic sampling with a built-in injection pump |
| Cleaning Function | automatic cleaning (compatible with manual) |
| Video | Yes |
| Measuring Time | Manual operation for measuring time for 1-4 minutes, automatic program for 2-10 minutes (depending on the actual temperature of the sample) |
| Display | 7-inch TFT touch screen display |
| Display Value | Density, relative density, temperature, concentration, Baume degree |
| Measuring Method | Store 100 sets of custom measurement methods, including measurement parameters for each sample |
| Stability Judgment | Based on measurement accuracy and time, the stabilization time can be set by oneself |
| Concentration Conversion | Input density and concentration tables or conversion formulas to automatically convert concentration values |
| Statistical Calculation | 100 sets of test values are automatically saved, and the average, maximum, and minimum values can be automatically calculated |
| Output | Standard configuration RS232, can be customized with RJ45, SD card, USB drive, USB |
| Optional Function | User management, audit tracking, electronic signature, export file verification, high-level protection MD5, multiple file formats such as PDF and Excel export, and other functions can be customized according to requirements |
Main Features
1. The density meter has high measurement accuracy, fast measurement speed, and a small sample size
2. Built in sampling pump, automatic sampling, washing, and drying measurement cell
3. High definition video camera technology, convenient for direct observation of the measurement pool
4. Smooth joints that do not produce bubbles or pollution, making it easy to clean
5. Enter a comparison table for density and concentration, and convert the concentration of the sample
6. Comply with GLP specifications, store results, inspection, and calibration records
7. Built in thermal printer, which can customize the printing of sample name, company and other information
8. Built in drying and blowing pump, which can automatically dry the sample tube after each cleaning is completed
Application Field
● Pharmaceutical industry: quality control of raw materials and pharmaceutical intermediates, determining the specific gravity and density of drugs
● Essence and spice: raw material verification of food essence, daily essence, cigarette essence and food additive
● Petrochemical industry: API index of crude oil, density testing of gasoline and diesel, and monitoring of additive mixing process
● Beverage industry: measuring sugar concentration, alcohol concentration, beer quality control, soft drink quality control
● Food industry: quality control for grape juice, tomato juice, fructose syrup, vegetable oil, and soft drink processing
● Brewing industry: detection of alcohol concentration of Baijiu, yellow rice wine, red wine, beer, fruit wine, rice wine, etc
● Chemical industry: Testing of urea, cleaning agents, ethylene glycol, acid-base, and ammonia concentration in chemical industries
● Mechanical manufacturing: metal processing, machine manufacturing, automotive industry, cleaning agent testing for electronic appliances
● Inspection institutions: standard laboratories, statutory testing institutions, third-party testing liquid density measurement
