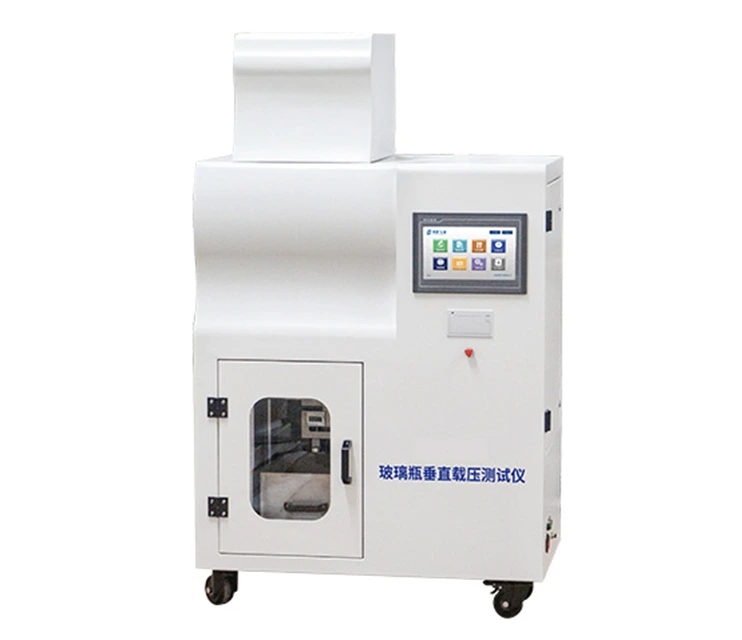

Vertical Load Tester for Glass Bottles
Model: BZ-PY-01
Test standards:GB/T 22934-2008, ISO 8113:2004
Features
Customer defined test mode, multiple test modes. The pressure maintaining pressure and time of each stage can be set
Integrated PLC and touch screen control, making operation more convenient and intuitive
The operation is simple. The operator only needs to select the preset test mode and press the test button to test. No need to set parameters before each test
Real time test curve can be viewed
Special cushion blocks can be customized according to different sample shapes, making it more convenient to fix samples and more accurate pressure bearing points
The design of the debris recycling bucket can better ensure the safety of the operator and facilitate the collection and cleaning of sample fragments
Maximum vertical pressure up to 25 kN
overload protection
Safety door lock design, the instrument can not perform any test when the safety door is not locked, effectively ensuring the safety of the operator.
Options parts
dedicated mini printer, high-precision calibration device, data analysis software
Specifications
|
Measuring range |
25 kN（or custom made） |
|
Sample height |
100 ~ 420 mm |
|
Sample diameter |
≤180 mm |
|
Selectable unit |
N,kgf,lb |
|
Resolving power |
0.001 N |
|
Power supply |
AC 220V 50Hz |
|
Overall dimensions |
800mm(L) × 500mm(B) × 1300mm(H) |
|
Net weight |
200 kg |
