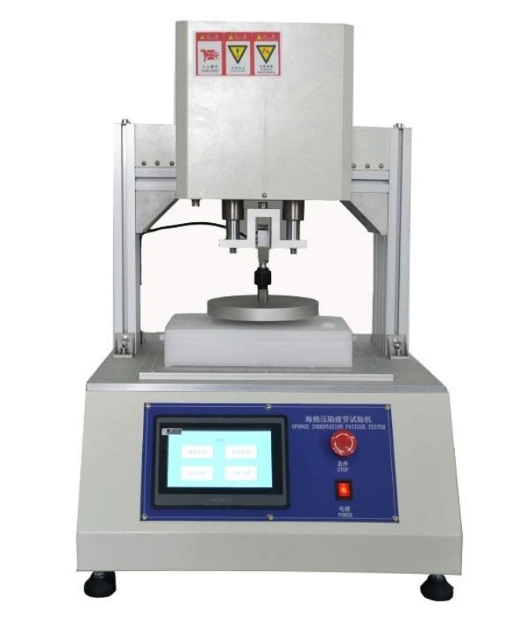

Sponge Foam Indentation Hardness Tester

Testing Principle

In the compression stress test of sponge foam, the sample is placed between the upper and lower pressure plates, and the upper pressure plate is compressed downward at the specified speed for a certain amount

When the size of the sample reaches the concavity specified in Method A (Method B, Method C) required by the national standard, the load element on it will be affected

The expected pressure is fed back to the controller for processing and display, so as to measure the indentation hardness of sponge, foam and other materials.

Features

Automatic zeroing: After receiving the test start command, the system automatically zeros.

Automatic return: After the sample fractures, it automatically returns to its initial position.

Change speed: This machine can adjust the test speed according to different samples.

Indication verification: The system can achieve accurate calibration of force values.

Control method: Test methods such as test force, test speed, and displacement can be selected according to the test needs.

Technical Specifications

Control method: Touch screen control.

Induction method: Precision load element.

Capacity: 200kg;

Unit switching: Kg, N, LB;

Upper pressure plate: diameter 200mm, bottom rounded corner R1mm;

Platform: 420 x 420mm, with a diameter of 6mm and a spacing of 20mm for ventilation holes;

Maximum stroke: 100mm;

Test speed: 100 ± 20mm/min;

Power source: servo motor;

Transmission method: precision ball screw;

Power supply: single-phase, 220V, 50Hz/60Hz, 2.5A;

Weight: 160kg;
