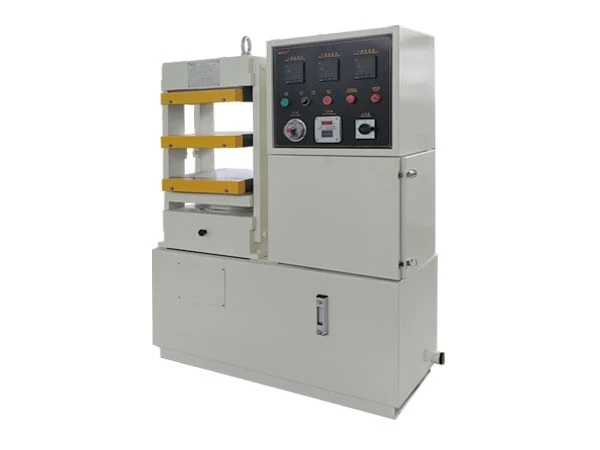

Vulcanizing press Conveyor Belt Vulcanizer with water-cooled
Product Introduction:
The Plate vulcanizer (water-cooled type) is suitable for vulcanization of rubber products, pressing of thermosetting plastics and insulating material products, with automatic control of pressure, time and temperature, which can realize mold clamping and pressurization, regular working cycle, and can automatically make up pressure to ensure the quality of pressed products. Compact structure, beautiful shape and easy operation.
Technical parameters:
1. Number of layers: 2
2. Nominal clamping force: 250kN（25T）
3. Hot plate size: 350mm×350mm
4. Cooling method: water cooling
5. Dimensions: 1000mm×1500mm×500mm
6. Power supply and power: AC380V±10% 50Hz 7kW
7. Net weight: 1.2T
