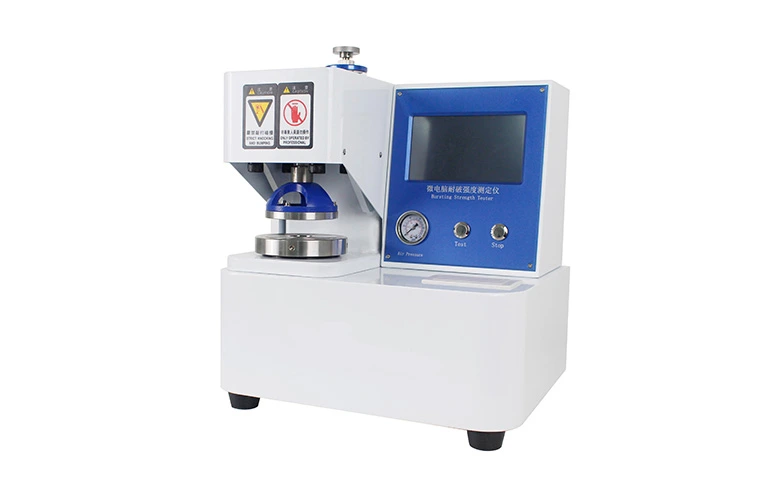

Automated Paper Bursting Strength Tester ISO 2758
Model: BZ-NP-01
Features
Touch screen operation, real time dynamic curve display
No film burst and oil leak, much time saving, lower cost
Calibrated by imported calibration tool, equipped with calibration module, free calibration at any time
Single piece sample min grab peak 1.5kg
Standard configuration
1 host, 4 rolls of printing paper, 1 bottle of silicone oil, 2 low-pressure rubber films, 5 imported Japanese low-pressure correction films, 1 specialized wrench for the burst tester.
Specifications
|
Measure range |
50 ~ 1600kpa, ≤±0.5% |
|
Pressure resolution |
0.01kpa |
|
Deformation measure deviation |
≤1mm |
|
Concentricity of top/bottom plate |
≤0.25mm |
|
Pressure of Film Convex Disk |
(9±0.2)mm /（30±5)kpa |
|
Oil feeding rate |
95±5ml/min |
|
Plate dia. |
Top:31.5±0.5mm, bottom: 31.5±0.5mm |
|
Deformation monitor |
Three-dimensional Semicircular full-view observation window |
|
Clamping positioning |
360° free orientation positioning test probe |
|
Probe control |
Intelligent control pressure relief system |
|
Driving mechanism |
All-steel chain drive to prevent detection deviation caused by compression deviation |
|
Power source |
Full-sealed solid power source |
|
HMI |
Touch screen, real time display of test data |
|
Clamping force |
100kpa ~ 1200kpa （adjustable） |
|
Units |
Kg/cm2,kpa,lbf/in2 |
|
Printer set |
Modular all-in-one thermal printer |
|
Working condition |
Temp.（20±10）℃，RH＜85% |
|
Overall size |
400*400*500mm |
|
Net weight |
45kg |
|
Air source |
Prepared by customer |
