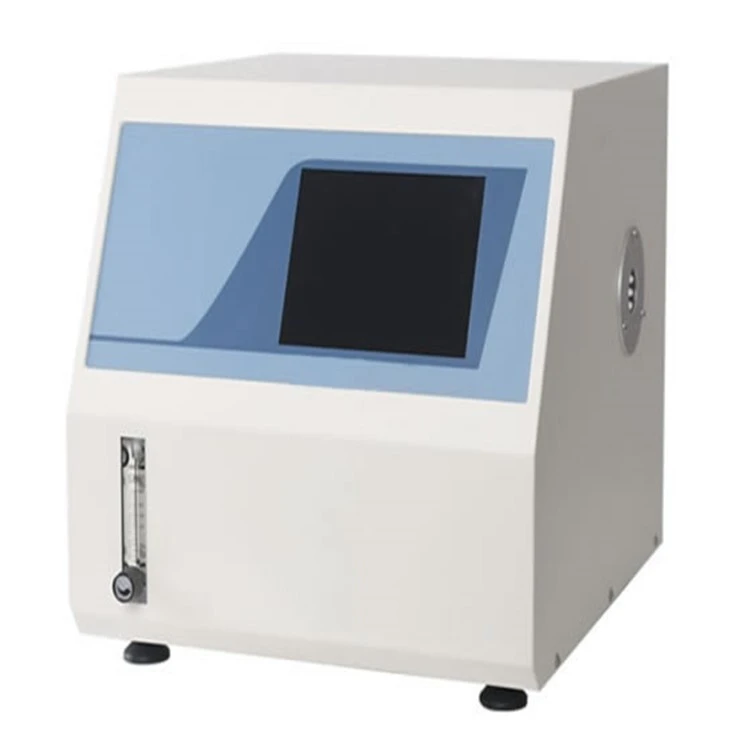

Carbon black content tester ASTM D1603
Model: TH-3600, TH-3600A
Standards
ASTM D1603-2012 and other related testing
standards for general test methods for insulation and sheath materials of
cables and optical cables
GB/T2951.41-2008 General Test Methods for
Insulation and Sheath Materials of Electric and Optical Cables
GB/T3515-2005 Rubber - Determination of
Carbon Content - Pyrolysis Method
GB-T13021-1991 Polyethylene Pipe and
Fitting Carbon Black Content Tester (Thermogravimetric Method)
Specifications
1. Display method: 8-inch capacitive touch
screen
2. Furnace size: Φ31 × 300 ± 5mm
3. Heating element: high-temperature alloy
wire
4. Heating zone length: 200mm
5. Constant temperature zone length: 100mm
6. Working temperature: room
temperature~1200 ℃
7. Temperature control method: intelligent
programmable control
8. Working power supply: AC220V/50HZ/60HZ
9. Sensor sensitivity: 0.01 ℃
10. Air circuit control: two ways
Features
1. The appearance and structure of the instrument are beautiful and easy to operate;
2. The integrated design of the heating
furnace body and control system facilitates instrument management for users.
3. High degree of automation, just set the
temperature value and heating time, and the instrument automatically heats up
to the set value;
4. High temperature control accuracy, wide
temperature range, and high furnace temperature uniformity;
5.8-inch LCD touch screen display,
user-friendly operation interface, can be started with one click operation
6. It has good constant temperature
function and can set the constant temperature time, with high constant
temperature accuracy;
7. The instrument can be set to any set of
different heating time periods, with different heating temperatures, heating
rates, and constant temperature times;
8. The parameter display is comprehensive,
displaying the set number of groups, theoretical temperature, actual
temperature, and heating time (or constant temperature time);
9. During the operation of the instrument,
the set parameters and the time for heating or constant temperature can be
viewed.
