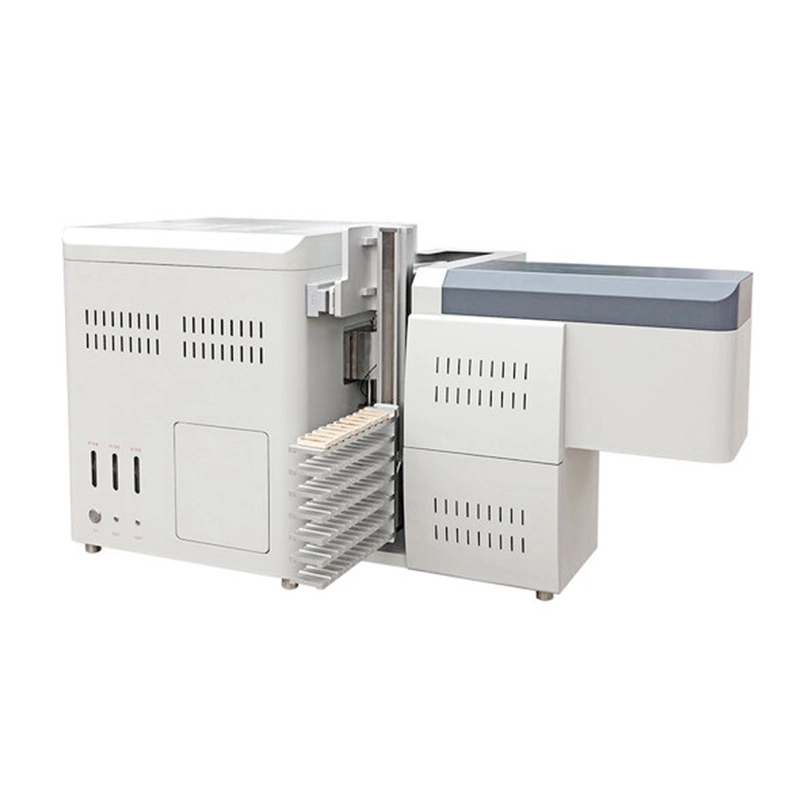

Automatic total sulfur content analyzer by infrared method-1700533076314276
Standards: ASTM D1552, ISO 19579
Features
◎ The MCPC control
module is used to monitor the status of the instrument in real time, save the
instrument parameters, and the test process is completed independently without
the intervention of the upper computer, realizing offline operation and self diagnosis
reminder of the instrument, greatly improving the reliability of the
instrument;
◎ Ultra low drift
infrared cell is adopted, with high accuracy and ease of operation;
◎ 70 samples can be
placed at a time to realize unattended;
◎ Exhaust gas can be
discharged to avoid air pollution in the laboratory;
◎ Real time
monitoring of laboratory ambient temperature and humidity;
◎ The sample
delivery system is designed with imported servo electric cylinder, so the
sample delivery is more stable and the failure rate is lower;
◎ Three oxygen lance
tube is used to complete the experimental process of gas seal, purging,
combustion, etc., with accurate test results;
◎ Imported gas
circuit components and optimized gas circuit design are adopted to ensure the
air tightness of the instrument;
◎ It can be
connected to the laboratory management system to ensure that the balance data
does not fall to the ground, and the test results are backed up and uploaded.
Specifications
|
Model |
MJ-SC-IR70 |
MJ-SC-IR12 |
|
Measuring range |
0.01%~40% (can be expanded according to
user requirements) |
|
|
Test method |
Infrared spectral absorption method |
|
|
Resolution of sulfur measurement |
0.001% |
|
|
Working furnace temperature |
1300 ℃ Temperature, accuracy: ± 1 ℃ |
|
|
Sample mass |
300 ± 10mg (coal, coke); 200 ± 10mg(Coal,
coke), 100 ± 10mg (petroleum products) |
|
|
Sample feeding method |
Automatic sample sending and discarding |
|
|
MCPC module |
√ |
// |
|
Touch screen |
/ |
|
|
Built-in balance |
/ |
/ |
|
Number of samples |
70 samples can be placed at a time,
setting out in cycles, adding, deleting and inserting test samples at any
time |
12 samples can be placed at a time,
setting out in cycles, adding, deleting and inserting test samples at any
time |
|
Single sample analysis time |
About 2min |
About 3min |
|
Accuracy |
within the uncertainty range of the
standard sample |
|
|
Power |
≤4KW |
|
|
Working power supply |
AC220V±22V/50H |
|
|
Overall dimensions |
1240×660×630(mm) |
670×580×720(mm) |
|
Net weight |
120kg |
87kg |
