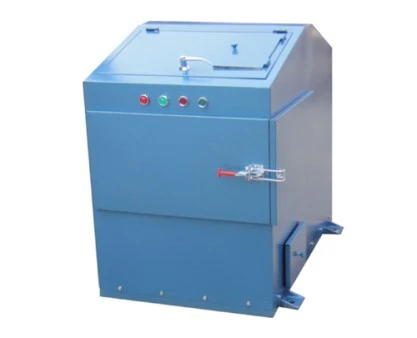

Disc Mill Disk Mill for Medium-hard ore
Product Introduction
The disc crusher has the advantages of compact structure, good sealing performance, convenient cleaning, high strength, small size, light weight, and is equipped with an adjustment numerical scale mechanism. It can be used for laboratories in geology, metallurgy, energy, building materials, chemical industry and other departments to finely crush all kinds of medium-hard ores.
Technical parameters
1. Model: ZY-FS-P175
2. Grinding disc diameter :φ175 mm
3.Feed size: ≤6 mm
4. Discharge particle size: 80~200 mesh
5.Yield :10~35 kg/h
6.Rotational speed :466r/min
7. Motor power :1.5 kW
8. Power supply voltage: 380V, 50HZ
9.Dimensions: 750×500×370mm
10. Weight 130 kg
Features
1. Use the friction force for fast grinding.2.The working noise is small, and the sample is easy to clean.
3.Fully sealed design, no dust pollution, in line with environmental protection requirements.
4.Just put it on the level ground, it can work normally, and there is no need to fix the foundation.
